L-Ron CFX EB/EB 3g 20AX 2Way Toggle EB

L-Ron CFX EB/EB 3g 20AX 2Way Toggle EB
L-Ron CFX EB/EB 3g 20AX 2Way Toggle EB - Image 2

Type

3 gang 20AX 2 Way FL Dolly

Plate Finish

Etrium Bronze Frame/Etrium Bronze Front

Insert Finish

Etrium Bronze

Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 3 gang 20AX 2 Way Toggle Etrium Bronze

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-016-003
Insert-Type

3 gang 20AX 2 Way FL Dolly
Insert-Colour

Etrium Bronze
Uf-ItmLabelTechInsert

T23-FLDLY
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 3 gang 20AX 2 Way Toggle Etrium Bronze
PlateFinish

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front
EAN13-Barcode

5017504059194
Dimensions(Nominal)

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Current-Rating

20AX
Commodity-Code

85365080
Wiring-Image

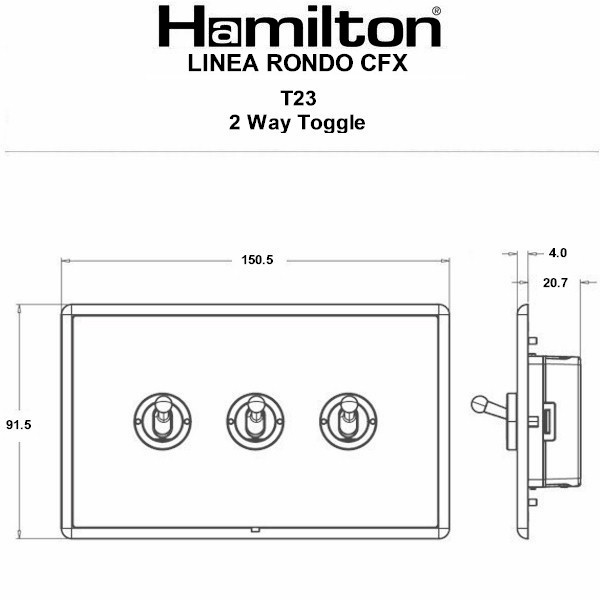

Dimension-Image

Luckins-TSI

398642617
Tech-Sheet-Page-Footer

LRXT23EB-EB – Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 3 gang 20AX 2 Way Toggle Etrium Bronze
product-code

S LR EB-EB
family-code

S RON-CFX
last-inv

14/07/2022
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533351772
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

16
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

Etrium Bronze
WEB-NumberofGangs

3
WEB-InsertType

2 Way
MainInsertColour

Etrium Bronze
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Etrium Bronze Frame/Etrium Bronze Front
Subheader2

Linea-Rondo CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description

L-Ron CFX EB/EB 3g 20AX 2Way Toggle EB
Height

91.5mm
Width

150.5mm
Depth

4.0mm
Module-Size-Height

53mm
Module-Size-Depth

23mm
