L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK

SKU: LRXT24BKBK Category:
L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK
L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK - Image 2
L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK - Image 3
L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK - Image 4
SKU: LRXT24BKBK Category:

Type

4 gang 20AX 2 Way FL Dolly

Plate Finish

Black Nickel Frame/Black Nickel Front

Insert Finish

Black Nickel

Description

Linea-Rondo CFX Black Nickel Frame/Black Nickel Front 4 gang 20AX 2 Way Toggle Black Nickel

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-016-004
Insert-Type

4 gang 20AX 2 Way FL Dolly
Insert-Colour

Black Nickel
Uf-ItmLabelTechInsert

T24-FLDLY
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Black Nickel Frame/Black Nickel Front 4 gang 20AX 2 Way Toggle Black Nickel
PlateFinish

Linea-Rondo CFX Black Nickel Frame/Black Nickel Front
EAN13-Barcode

5017504532284
Dimensions(Nominal)

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Current-Rating

20AX
Commodity-Code

85365080

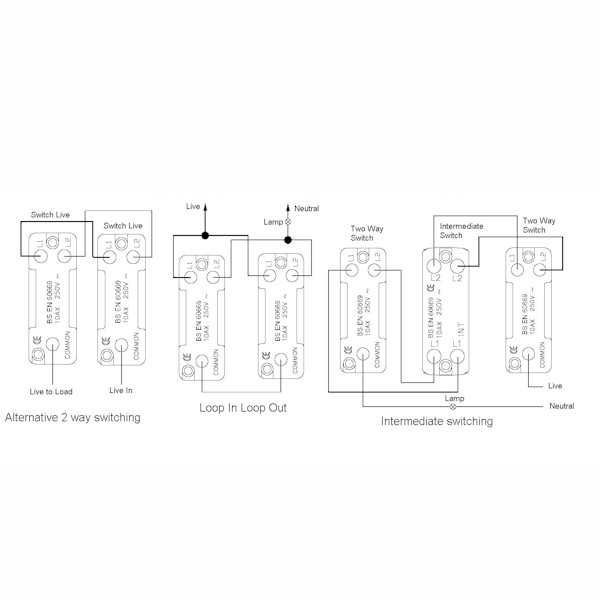

Wiring-Image

Item-Image

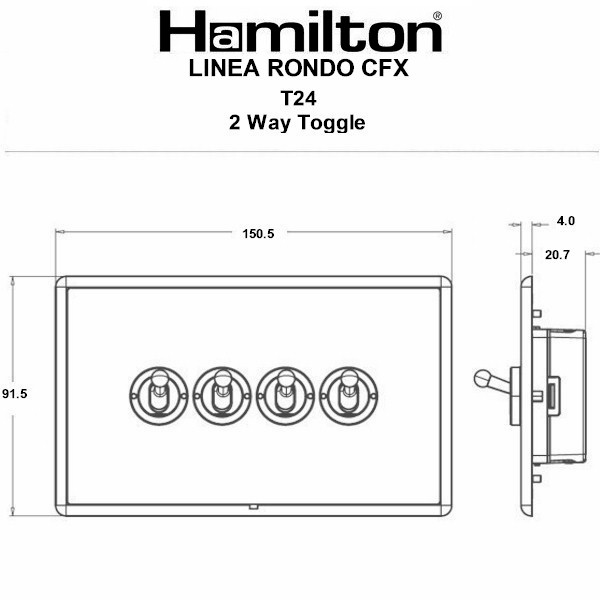

Dimension-Image

Luckins-TSI

391687433
Tech-Sheet-Page-Footer

LRXT24BK-BK – Linea-Rondo CFX Black Nickel Frame/Black Nickel Front 4 gang 20AX 2 Way Toggle Black Nickel
product-code

S LR BK-BK
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533256644
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

16
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

Black Nickel
WEB-NumberofGangs

4
WEB-InsertType

2 Way
MainInsertColour

Black Nickel
TrimColour

n/a
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Black Nickel Frame/Black Nickel Front
Subheader2

Linea-Rondo CFX Dollies
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
description

L-Ron CFX BK/BK 4g 20AX 2Way Toggle BK
Height

91.5mm
Width

150.5mm
Depth

4.0mm
Module-Size-Height

53mm
Module-Size-Depth

23mm
