L-Ron CFX EB/EB 2g N-Iso TV+Sat 2in/2 BL

L-Ron CFX EB/EB 2g N-Iso TV+Sat 2in/2 BL
L-Ron CFX EB/EB 2g N-Iso TV+Sat 2in/2 BL - Image 2
L-Ron CFX EB/EB 2g N-Iso TV+Sat 2in/2 BL - Image 3

Type

2 gang Non-Isolated TV+Satellite 2in/2out

Plate Finish

Etrium Bronze Frame/Etrium Bronze Front

Insert Finish

Black

Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 2 gang Non-Isolated TV+Satellite 2in/2out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-032-003
Insert-Type

2 gang Non-Isolated TV+Satellite 2in/2out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TVSAT
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 2 gang Non-Isolated TV+Satellite 2in/2out Black
PlateFinish

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front
EAN13-Barcode

5017504059613
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

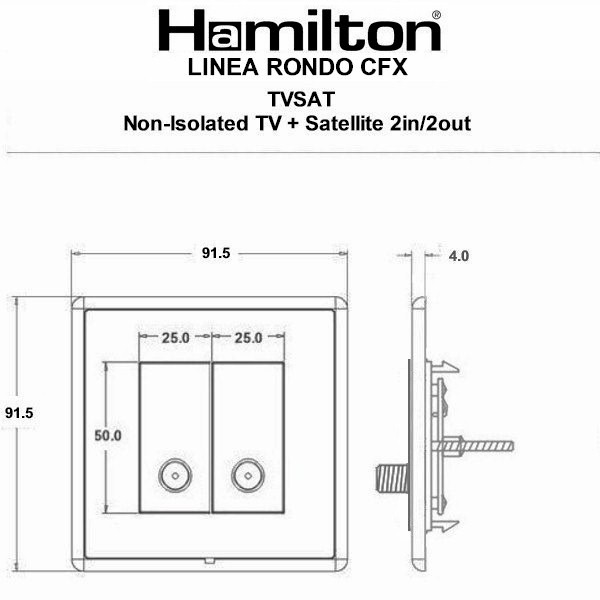

Dimension-Image

Luckins-TSI

398643344
Tech-Sheet-Page-Footer

LRXTVSATEB-EBB – Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front 2 gang Non-Isolated TV+Satellite 2in/2out Black
product-code

S LR EB-EB
family-code

S RON-CFX
last-inv

22/02/16
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533352137
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

032
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

Etrium Bronze
WEB-InsertType

TV+Satellite Non-Isolated
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

10/02/26
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

L-Ron CFX EB/EB 2g N-Iso TV+Sat 2in/2 BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Etrium Bronze Frame/Etrium Bronze Front
Subheader2

Linea-Rondo CFX Range
