L-Ron CFX BC/SS 1g Telephone Slave WH

L-Ron CFX BC/SS 1g Telephone Slave WH
L-Ron CFX BC/SS 1g Telephone Slave WH - Image 2
L-Ron CFX BC/SS 1g Telephone Slave WH - Image 3
L-Ron CFX BC/SS 1g Telephone Slave WH - Image 4

Type

1 gang Telephone Slave

Plate Finish

Bright Chrome Frame/Satin Steel Front

Insert Finish

White

Description

Linea-Rondo CFX Bright Chrome Frame/Satin Steel Front 1 gang Telephone Slave White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-031-004
Insert-Type

1 gang Telephone Slave
Insert-Colour

White
Uf-ItmLabelTechInsert

TCS
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Satin Steel Front 1 gang Telephone Slave White
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Satin Steel Front
EAN13-Barcode

5017504510657

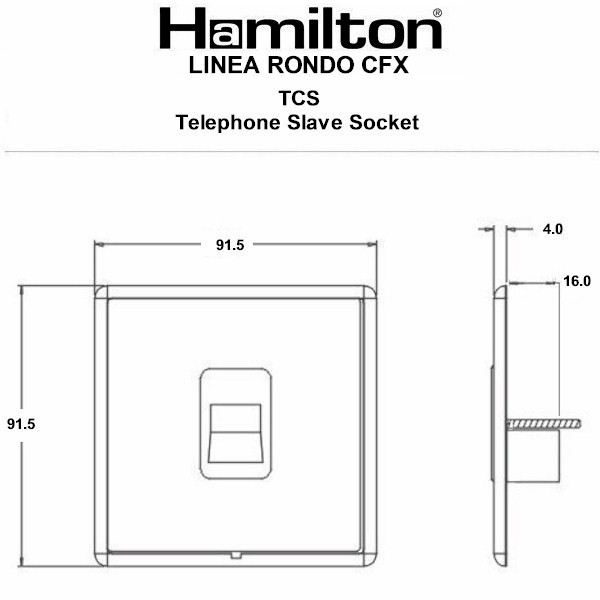

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391690051
Tech-Sheet-Page-Footer

LRXTCSBC-SSW – Linea-Rondo CFX Bright Chrome Frame/Satin Steel Front 1 gang Telephone Slave White
product-code

S LR BC-SS
family-code

S RON-CFX
last-inv

16/11/2020
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533259120
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

31
InsertSortOrder

004
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Telephone Slave
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

L-Ron CFX BC/SS 1g Telephone Slave WH
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Bright Chrome Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
