L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL

SKU: LRXDENTABABB Category:
L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL
L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL - Image 2
L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL - Image 3
L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL - Image 4
SKU: LRXDENTABABB Category:

Type

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible)

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Black

Description

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-031-002
Insert-Type

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible)
Insert-Colour

Black
Uf-ItmLabelTechInsert

DENT
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) Black
PlateFinish

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504481087
Dimensions(Nominal)

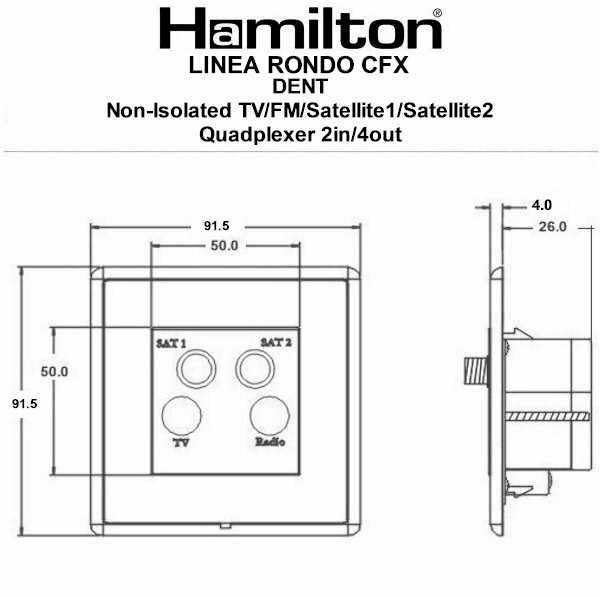

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 50581:2012, BS EN 60728-4:2008, BS EN 50083-2: 2012/A1:2015
EuroFix-Additional-Notes

Quadplexer for use with combined TV FM and Satellite Signals (DAB compatible)
Frequencies-1

TV=5-68 MHz 125-860 MHz
Frequencies-2

FM=88-108 MHz
Frequencies-3

SAT DC=950-2200 MHz
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391678125
Tech-Sheet-Page-Footer

LRXDENTAB-ABB – Linea-Rondo CFX Antique Brass Frame/Antique Brass Front Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2in/4out (DAB Compatible) Black
product-code

S LR AB-AB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533247705
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

31
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

TV+FM+SAT1+SAT2
WEB-NumberofGangs

4
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

L-Ron CFX AB/AB No-Isolat TV+FM+2XSAT BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Antique Brass Frame/Antique Brass Front
Subheader2

Linea-Rondo CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
