L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL

SKU: LRX2J45ABABB Category:
L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL
L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL - Image 2
L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL - Image 3
L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL - Image 4
SKU: LRX2J45ABABB Category:

Type

2 gang RJ45 CAT 5E Outlet - Unshielded

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Black

Description

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front 2 gang RJ45 CAT 5E Outlet – Unshielded Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-033-002
Insert-Type

2 gang RJ45 CAT 5E Outlet – Unshielded
Insert-Colour

Black
Uf-ItmLabelTechInsert

2J45
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front 2 gang RJ45 CAT 5E Outlet – Unshielded Black
PlateFinish

Linea-Rondo CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504481582
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
EuroFix-Additional-Notes

Can be used in both EIA 568A and EIA 568B wiring schedules
Commodity-Code

85176990
Wiring-Image

Item-Image

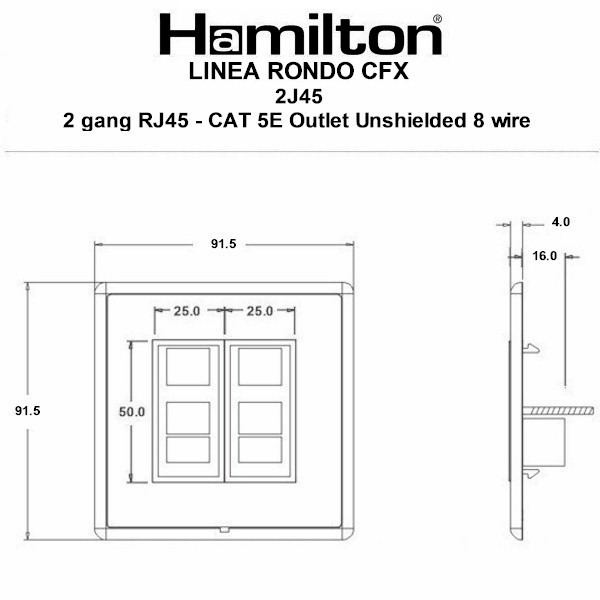

Dimension-Image

Luckins-TSI

391686492
Tech-Sheet-Page-Footer

LRX2J45AB-ABB – Linea-Rondo CFX Antique Brass Frame/Antique Brass Front 2 gang RJ45 CAT 5E Outlet – Unshielded Black
product-code

S LR AB-AB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533255742
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

33
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

RJ45 CAT 5E – Unshielded
WEB-NumberofGangs

2
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

L-Ron CFX AB/AB 2g RJ45 CAT5E Unsheld BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Antique Brass Frame/Antique Brass Front
Subheader2

Linea-Rondo CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
