L-Ron CFX SN/SS 2g 10AX 2 Way Rkr SS/BL

L-Ron CFX SN/SS 2g 10AX 2 Way Rkr SS/BL
L-Ron CFX SN/SS 2g 10AX 2 Way Rkr SS/BL - Image 2
L-Ron CFX SN/SS 2g 10AX 2 Way Rkr SS/BL - Image 3

Type

2 gang 10AX 2 Way Rocker

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel/Black

Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 2 gang 10AX 2 Way Rocker Satin Steel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-001-002
Insert-Type

2 gang 10AX 2 Way Rocker
Insert-Colour

Satin Steel/Black
Uf-ItmLabelTechInsert

R22
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 2 gang 10AX 2 Way Rocker Satin Steel/Black
PlateFinish

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504526221

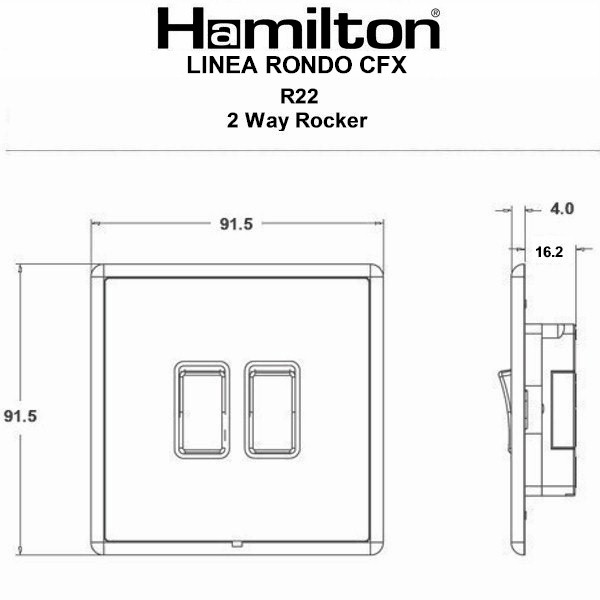

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391682027
Tech-Sheet-Page-Footer

LRXR22SN-SSB – Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 2 gang 10AX 2 Way Rocker Satin Steel/Black
product-code

S LR SN-SS
family-code

S RON-CFX
last-inv

29/06/21
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533251526
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

001
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

2 Way
WEB-NumberofGangs

2
MainInsertColour

Satin Steel
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SN/SS 2g 10AX 2 Way Rkr SS/BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
