L-Ron CFX SN/SS 20AX PTM/PTB Rkr SN/BL

L-Ron CFX SN/SS 20AX PTM/PTB Rkr SN/BL
L-Ron CFX SN/SS 20AX PTM/PTB Rkr SN/BL - Image 2
L-Ron CFX SN/SS 20AX PTM/PTB Rkr SN/BL - Image 3

Type

1 gang 20AX Push To Make/Push to Break Retractive FL Rocker

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel/Black

Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make/Push to Break Retractive Rocker Satin Steel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-001-
Insert-Type

1 gang 20AX Push To Make/Push to Break Retractive FL Rocker
Insert-Colour

Satin Steel/Black
Uf-ItmLabelTechInsert

CFXRRT-FL
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make/Push to Break Retractive Rocker Satin Steel/Black
PlateFinish

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504526191

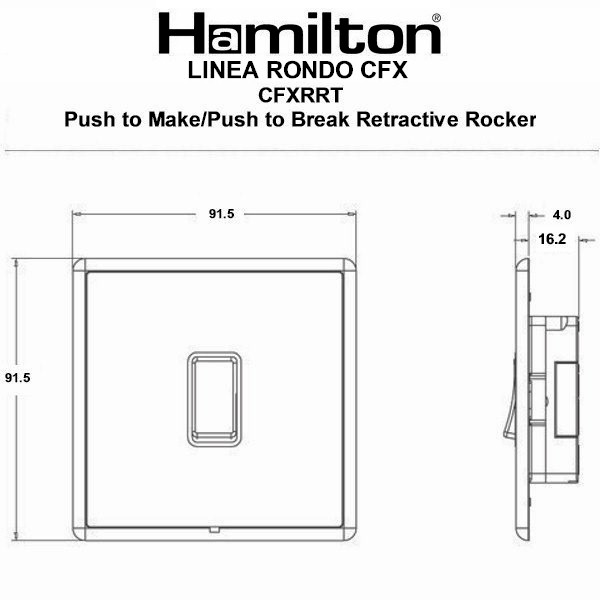

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

20AX
Maximum-Load

20 Amp resistive
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391677430
Tech-Sheet-Page-Footer

LRXRRTSN-SSB – Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 20AX Push To Make/Push to Break Retractive Rocker Satin Steel/Black
product-code

S LR SN-SS
family-code

S RON-CFX
last-inv

29/03/2018
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533247022
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

1
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Push To Make Retractive
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

Black
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SN/SS 20AX PTM/PTB Rkr SN/BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Module-Size

Height = 53mm Width = 25mm Depth = 23mm
Module-Size-Height

53mm
Module-Size-Width

25mm
Module-Size-Depth

23mm
