L-Ron CFX SB/SS Wd Rkr 3g 10AX 2W SB/WH

L-Ron CFX SB/SS Wd Rkr 3g 10AX 2W SB/WH
L-Ron CFX SB/SS Wd Rkr 3g 10AX 2W SB/WH - Image 2

Type

Wide Rocker - 3 gang 10AX 2 Way Rocker

Plate Finish

Satin Brass Frame/Satin Steel Front

Insert Finish

Satin Brass/White

Description

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front Wide Rocker 3 gang 10AX 2 Way Satin Brass/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-001-003
Insert-Type

Wide Rocker – 3 gang 10AX 2 Way Rocker
Insert-Colour

Satin Brass/White
Uf-ItmLabelTechInsert

WR23
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front Wide Rocker 3 gang 10AX 2 Way Satin Brass/White
PlateFinish

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front
EAN13-Barcode

5051164018269
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

1x4mm² Multi-strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

2×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Additional-Notes

CE Marked
Module-Size

Height = 67mm Width = 67mm Depth = 23mm
Commodity-Code

85365080
Wiring-Image

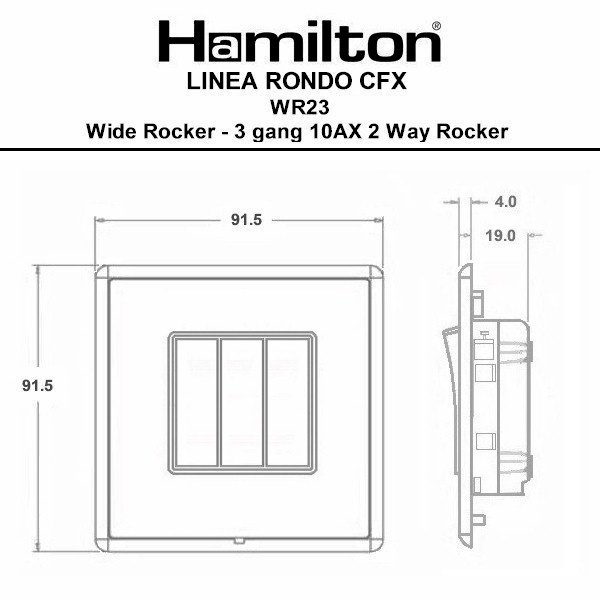

Dimension-Image

Luckins-TSI

408176057
Tech-Sheet-Page-Footer

LRXWR23SB-SSW – Linea-Rondo CFX Satin Brass Frame/Satin Steel Front Wide Rocker 3 gang 10AX 2 Way Satin Brass/White
product-code

S LR SB-SS
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533412899
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

001
InsertSortOrder

003
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Module-Size-Height

67mm
Module-Size-Width

67mm
Module-Size-Depth

23mm
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Brass
WEB-InsertType

2 Way Wide
WEB-NumberofGangs

3
MainInsertColour

Satin Brass
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Brass Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SB/SS Wd Rkr 3g 10AX 2W SB/WH
Height

91.5mm
Width

91.5mm
Depth

4.0mm
