L-Ron CFX BC/PB 4g 20AX 2 Way Rkr BC/BL

L-Ron CFX BC/PB 4g 20AX 2 Way Rkr BC/BL
L-Ron CFX BC/PB 4g 20AX 2 Way Rkr BC/BL - Image 2
L-Ron CFX BC/PB 4g 20AX 2 Way Rkr BC/BL - Image 3

Type

4 gang FL 20AX 2 Way Rocker

Plate Finish

Bright Chrome Frame/Polished Brass Front

Insert Finish

Bright Chrome/Black

Description

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 4 gang 20AX 2 Way Rocker Bright Chrome/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-001-014
Insert-Type

4 gang FL 20AX 2 Way Rocker
Insert-Colour

Bright Chrome/Black
Uf-ItmLabelTechInsert

R242-FL
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 4 gang 20AX 2 Way Rocker Bright Chrome/Black
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front
EAN13-Barcode

5017504496395
Dimensions(Nominal)

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

6x1mm²
Terminal-Capacity-2

5×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm²
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

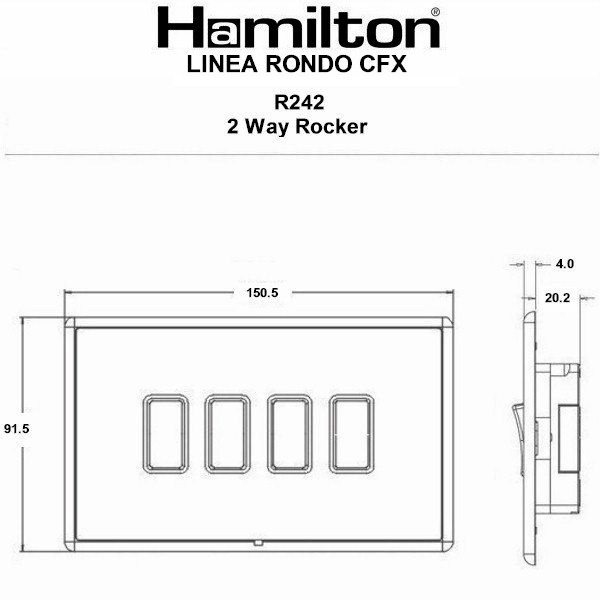

Dimension-Image

Luckins-TSI

391684630
Tech-Sheet-Page-Footer

LRXR242BC-PBB – Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 4 gang 20AX 2 Way Rocker Bright Chrome/Black
product-code

S LR BC-PB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533253993
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

1
InsertSortOrder

014
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

2 Way
WEB-NumberofGangs

4
MainInsertColour

Bright Chrome
TrimColour

Black
Last-Updated-At-Hamilton

16/02/2026
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Bright Chrome Frame/Polished Brass Front
Subheader2

Linea-Rondo CFX Rocker Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX BC/PB 4g 20AX 2 Way Rkr BC/BL
Height

91.5mm
Width

150.5mm
Depth

4.0mm
Module-Size-Depth

23mm
