L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH

L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH
L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH - Image 2
L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH - Image 3
L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH - Image 4

Type

2 gang 10AX Intermediate Rocker

Plate Finish

Bright Chrome Frame/Polished Brass Front

Insert Finish

Bright Chrome/White

Description

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 2 gang 10AX Intermediate Rocker Bright Chrome/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-001-022
Insert-Type

2 gang 10AX Intermediate Rocker
Insert-Colour

Bright Chrome/White
Uf-ItmLabelTechInsert

R32
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 2 gang 10AX Intermediate Rocker Bright Chrome/White
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front
EAN13-Barcode

5017504497323
Dimensions(Nominal)

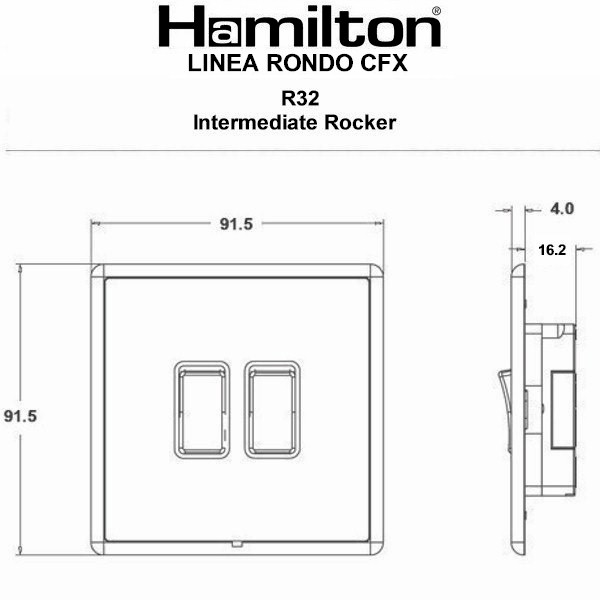

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391683343
Tech-Sheet-Page-Footer

LRXR32BC-PBW – Linea-Rondo CFX Bright Chrome Frame/Polished Brass Front 2 gang 10AX Intermediate Rocker Bright Chrome/White
product-code

S LR BC-PB
family-code

S RON-CFX
last-inv

20/05/14
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533252800
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

001
InsertSortOrder

022
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Intermediate
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

White
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Bright Chrome Frame/Polished Brass Front
Subheader2

Linea-Rondo CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX BC/PB 2g 10AX Inter Rkr BC/WH
Height

91.5mm
Width

91.5mm
Depth

4.0mm
