L-Ron CFX SN/SS 1g 5A Unswt Skt WH

L-Ron CFX SN/SS 1g 5A Unswt Skt WH
L-Ron CFX SN/SS 1g 5A Unswt Skt WH - Image 2
L-Ron CFX SN/SS 1g 5A Unswt Skt WH - Image 3
L-Ron CFX SN/SS 1g 5A Unswt Skt WH - Image 4

Type

1 gang 5A Unswitched Socket

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

White

Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 5A Unswitched Socket White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-021-006
Insert-Type

1 gang 5A Unswitched Socket
Insert-Colour

White
Uf-ItmLabelTechInsert

US5
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 5A Unswitched Socket White
PlateFinish

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504520052

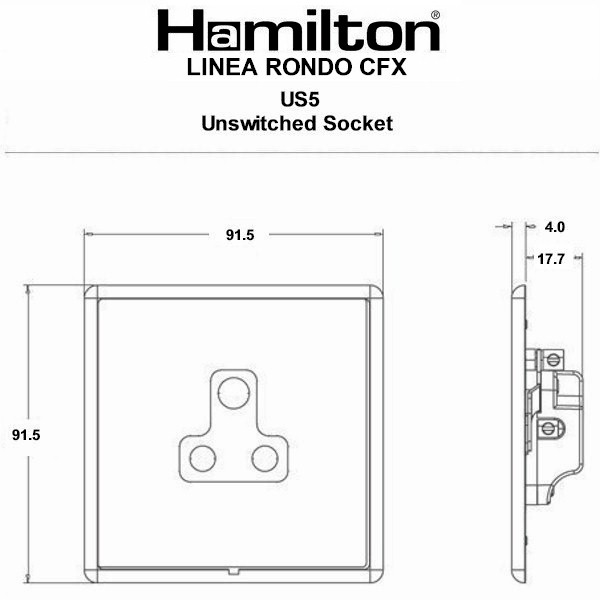

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

None
Current-Rating

5 Amp
Maximum-Load

5 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

2×2.5mm²
Terminal-Capacity-4

1x4mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

2 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 546
Additional-Notes

Shuttered: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391692415
Tech-Sheet-Page-Footer

LRXUS5SN-SSW – Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 5A Unswitched Socket White
product-code

S LR SN-SS
family-code

S RON-CFX
last-inv

27/11/2023
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533261435
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

21
InsertSortOrder

006
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Unswitched Socket
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

12/05/2025
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/nrql/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SN/SS 1g 5A Unswt Skt WH
Height

91.5mm
Width

91.5mm
Depth

4.0mm
