L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL

L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL
L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL - Image 2
L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL - Image 3
L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL - Image 4

Type

2 gang 13A Double Pole Switched Socket

Plate Finish

Satin Brass Frame/Satin Steel Front

Insert Finish

Satin Brass/Black

Description

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front 2 gang 13A Double Pole Switched Socket Satin Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-021-002
Insert-Type

2 gang 13A Double Pole Switched Socket
Insert-Colour

Satin Brass/Black
Uf-ItmLabelTechInsert

SS2
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front 2 gang 13A Double Pole Switched Socket Satin Brass/Black
PlateFinish

Linea-Rondo CFX Satin Brass Frame/Satin Steel Front
EAN13-Barcode

5017504462024

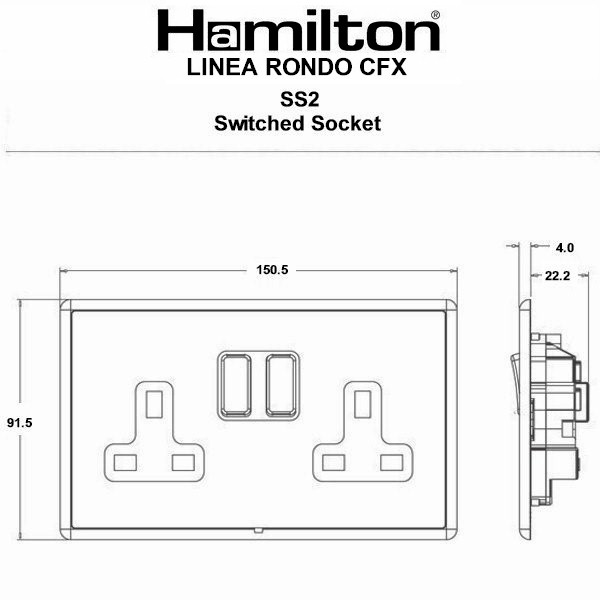

Dimensions(Nominal)

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Additional-Notes

Dual Earth: Yes
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391689619
Tech-Sheet-Page-Footer

LRXSS2SB-SSB – Linea-Rondo CFX Satin Brass Frame/Satin Steel Front 2 gang 13A Double Pole Switched Socket Satin Brass/Black
product-code

S LR SB-SS
family-code

S RON-CFX
last-inv

29/07/21
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533258684
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

021
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Brass
WEB-InsertType

Switched Socket
WEB-NumberofGangs

2
MainInsertColour

Satin Brass
TrimColour

Black
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Brass Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SB/SS 2g 13A DP Swt Skt SB/BL
Height

91.5mm
Width

150.5mm
Depth

4.0mm
