L-Ron CFX EB/EB Shaver Dual Volt Skt BL

L-Ron CFX EB/EB Shaver Dual Volt Skt BL
L-Ron CFX EB/EB Shaver Dual Volt Skt BL - Image 2
L-Ron CFX EB/EB Shaver Dual Volt Skt BL - Image 3

Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)

Plate Finish

Etrium Bronze Frame/Etrium Bronze Front

Insert Finish

Black

Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-021-011
Insert-Type

Shaver Dual Voltage Unswitched Socket (Vertically Mounted)
Insert-Colour

Black
Uf-ItmLabelTechInsert

SHS
Uf-HAM-Plate-Range

Linea-Rondo CFX Vertical
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
PlateFinish

Linea-Rondo CFX Vertical Etrium Bronze Frame/Etrium Bronze Front
EAN13-Barcode

5017504058906

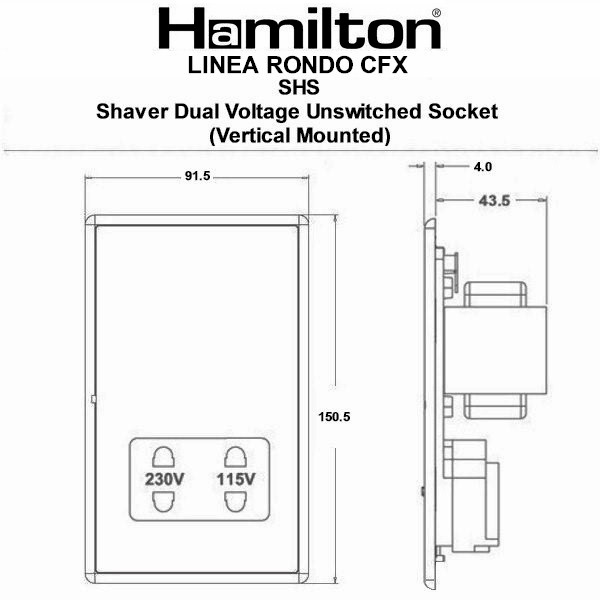

Dimensions(Nominal)

Double: Height = 150.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

None
Current-Rating

20VA
Maximum-Load

200/250V input; 115/230V 20VA output
Mains-Frequency

50Hz
Contact-Gap-Minimum

None
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

3×2.5mm²
Terminal-Capacity-4

2x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

9x1mm²
Earth-Terminal-Capacity-2

6×1.5mm²
Earth-Terminal-Capacity-3

4×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 61558-2-5 + BS 4573
Additional-Notes

Must be mounted vertically. Shuttered :Yes. Box Depth 47mm
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

398642329
Tech-Sheet-Page-Footer

LRXSHSEB-EBB – Linea-Rondo CFX Etrium Bronze Frame/Etrium Bronze Front Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
product-code

S LR EB-EB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533351536
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

21
InsertSortOrder

011
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Etrium Bronze
Uf-HAMFrameFinish

Etrium Bronze
WEB-InsertType

Shaver Socket
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

23/01/2026
last-inv

22/09/2023
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

47mm
Plate-Finish

Etrium Bronze Frame/Etrium Bronze Front
Subheader2

Linea-Rondo CFX Power Sockets
QR-Instruction

https://online.fliphtml5.com/Hamilton/bzky/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX EB/EB Shaver Dual Volt Skt BL
Height

150.5mm
Width

91.5mm
Depth

4.0mm
