L-Ron CFX RB/RB 10A (6AX) Card Swt RB/BL

L-Ron CFX RB/RB 10A (6AX) Card Swt RB/BL
L-Ron CFX RB/RB 10A (6AX) Card Swt RB/BL - Image 2
L-Ron CFX RB/RB 10A (6AX) Card Swt RB/BL - Image 3

Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator

Plate Finish

Richmond Bronze Frame/Richmond Bronze Front

Insert Finish

Richmond Bronze/Black

Description

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-038-001
Insert-Type

1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator
Insert-Colour

Richmond Bronze/Black
Uf-ItmLabelTechInsert

C11
Uf-HAM-Plate-Range

Linea-Rondo CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black
PlateFinish

Linea-Rondo CFX EuroFix Richmond Bronze Frame/Richmond Bronze Front
EAN13-Barcode

5017504056537
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

10A (6AX)
Maximum-Load

10 Amp (6 Amp inductive)
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x1mm²
Terminal-Capacity-2

2×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-3
Additional-Notes

Adjustable Time Delay 10 seconds – 5 minutes. Suitable for 44mm and 54mm width Hotel Key Cards
Commodity-Code

85363010
Wiring-Image

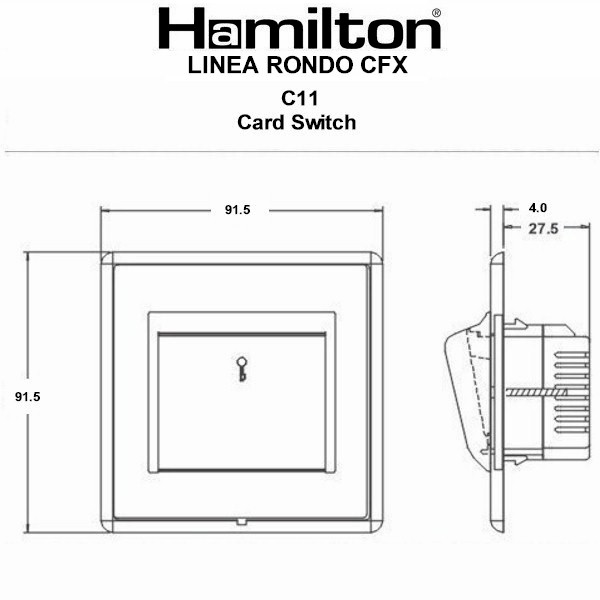

Dimension-Image

Luckins-TSI

398640046
Tech-Sheet-Page-Footer

LRXC11RB-RBB – Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black
product-code

S LR RB-RB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533350168
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

38
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

Richmond Bronze
WEB-InsertType

Key Card
WEB-NumberofGangs

1
MainInsertColour

Richmond Bronze
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Richmond Bronze Frame/Richmond Bronze Front
Subheader2

Linea-Rondo CFX Key Card Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/mmdg/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
Height

91.5mm
Width

91.5mm
Depth

4.0mm
