L-Ron CFX PB/AB 4 Euro Apet 100X50+Grid

L-Ron CFX PB/AB 4 Euro Apet 100X50+Grid
L-Ron CFX PB/AB 4 Euro Apet 100X50+Grid - Image 2
L-Ron CFX PB/AB 4 Euro Apet 100X50+Grid - Image 3

Type

4 gang EuroFix 100x50mm Apertured Plate with Grid

Plate Finish

Polished Brass Frame/Antique Brass Front

Insert Finish

N/A

Description

Linea-Rondo CFX EuroFix Polished Brass Frame/Antique Brass Front Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-046-004
Insert-Type

4 gang EuroFix 100x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO4
Uf-HAM-Plate-Range

Linea-Rondo CFX EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX EuroFix Polished Brass Frame/Antique Brass Front Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
PlateFinish

Linea-Rondo CFX EuroFix Polished Brass Frame/Antique Brass Front
EAN13-Barcode

5017504429188
Dimensions(Nominal)

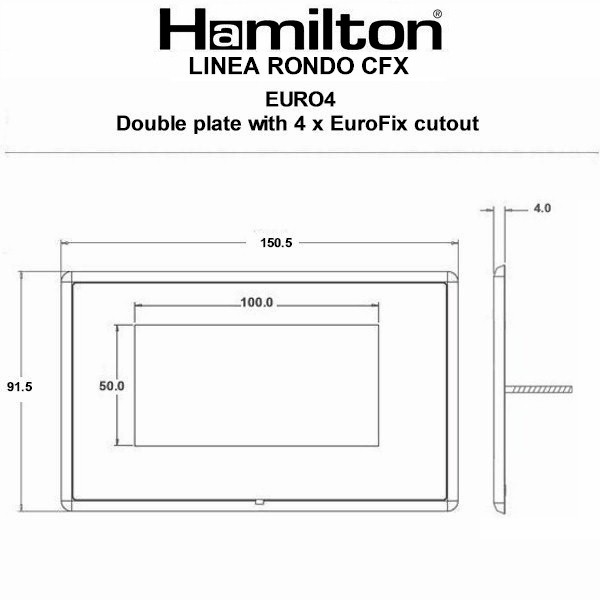

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

391680524
Tech-Sheet-Page-Footer

LRXEURO4PB-AB – Linea-Rondo CFX EuroFix Polished Brass Frame/Antique Brass Front Double Plate complete with 4 EuroFix Apertures 100x50mm and Grid
product-code

S EF PB-AB
family-code

S RON-CFX
last-inv

08/08/2014
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533250077
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

46
InsertSortOrder

004
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Polished Brass
WEB-InsertType

Plate
WEB-NumberofGangs

4
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Inserts
Voltage

Insert Specific
IP-Rating

IPXXB
description

L-Ron CFX PB/AB 4 Euro Apet 100X50+Grid
Height

91.5mm
Width

150.5mm
Depth

4.0mm
Plate-Finish

Polished Brass Frame/Antique Brass Front
Subheader2

Linea-Rondo CFX Eurofix

Download datasheet
