L-Ron CFX AB/SB 1 Euro Apert 25×50+Grid

SKU: LRXEURO1ABSB Category:
L-Ron CFX AB/SB 1 Euro Apert 25x50+Grid
L-Ron CFX AB/SB 1 Euro Apert 25x50+Grid - Image 2
L-Ron CFX AB/SB 1 Euro Apert 25x50+Grid - Image 3
SKU: LRXEURO1ABSB Category:

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Antique Brass Frame/Satin Brass Front

Insert Finish

N/A

Description

Linea-Rondo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-046-001
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Linea-Rondo CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
PlateFinish

Linea-Rondo CFX EuroFix Antique Brass Frame/Satin Brass Front
EAN13-Barcode

5017504057497
Dimensions(Nominal)

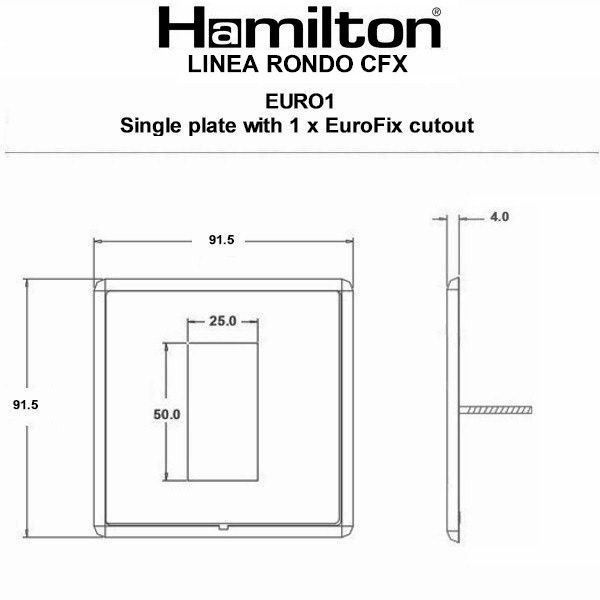

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

393795543
Tech-Sheet-Page-Footer

LRXEURO1AB-SB – Linea-Rondo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
product-code

S EF AB-SB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533290244
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

46
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Insert
Voltage

Insert Specific
IP-Rating

IPXXB
description

L-Ron CFX AB/SB 1 Euro Apert 25×50+Grid
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Antique Brass Frame/Satin Brass Front
Subheader2

Linea-Rondo CFX Eurofix
