L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH

L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH
L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH - Image 2
L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH - Image 3
L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH - Image 4

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Polished Brass Frame/Antique Brass Front

Insert Finish

Red/White

Description

Linea-Rondo CFX Polished Brass Frame/Antique Brass Front 1 gang 45A Double Pole Rocker and Neon Red/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-027-012
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Insert-Colour

Red/White
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Polished Brass Frame/Antique Brass Front 1 gang 45A Double Pole Rocker and Neon Red/White
PlateFinish

Linea-Rondo CFX Polished Brass Frame/Antique Brass Front
EAN13-Barcode

5017504424718

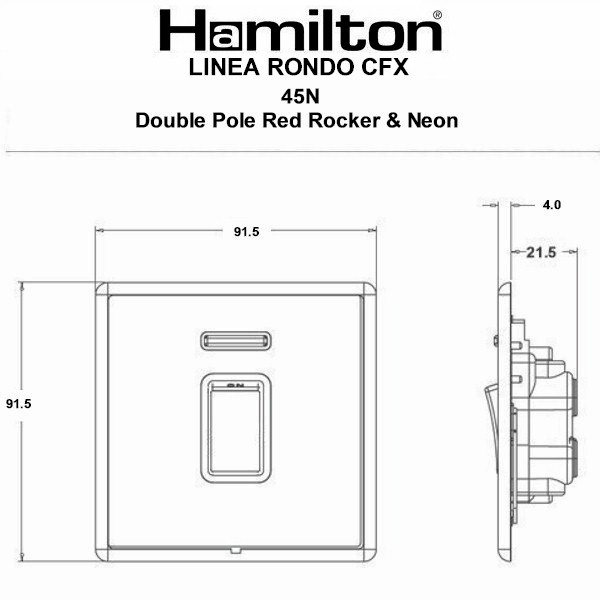

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Double
Current-Rating

45 Amp
Maximum-Load

45 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391676664
Tech-Sheet-Page-Footer

LRX45NPB-ABW – Linea-Rondo CFX Polished Brass Frame/Antique Brass Front 1 gang 45A Double Pole Rocker and Neon Red/White
product-code

S LR PB-AB
family-code

S RON-CFX
last-inv

12/06/2014
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533246272
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Polished Brass
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

White
Last-Updated-At-Hamilton

06/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Polished Brass Frame/Antique Brass Front
Subheader2

Linea-Rondo CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX PB/AB 1g 45A DP+N Red Rkr/WH
Height

91.5mm
Width

91.5mm
Depth

4.0mm

Download datasheet
