L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL

SKU: LRXDPNBCBKB Category:
L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL
L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL - Image 2
L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL - Image 3
L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL - Image 4
SKU: LRXDPNBCBKB Category:

Type

1 gang 20AX Double Pole Rocker + Neon

Plate Finish

Bright Chrome Frame/Black Nickel Front

Insert Finish

Bright Chrome/Black

Description

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-027-002
Insert-Type

1 gang 20AX Double Pole Rocker + Neon
Insert-Colour

Bright Chrome/Black
Uf-ItmLabelTechInsert

DPN
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/Black
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front
EAN13-Barcode

5017504392949

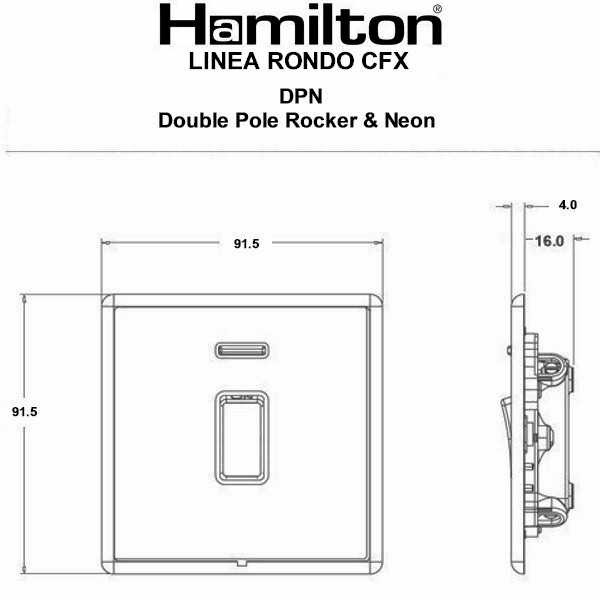

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Double
Current-Rating

20AX
Maximum-Load

20 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391679658
Tech-Sheet-Page-Footer

LRXDPNBC-BKB – Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 1 gang 20AX Double Pole Rocker and Neon Bright Chrome/Black
product-code

S LR BC-BK
family-code

S RON-CFX
last-inv

17/07/2019
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533249224
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

27
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Bright Chrome
TrimColour

Black
Last-Updated-At-Hamilton

23/01/2026
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Bright Chrome Frame/Black Nickel Front
Subheader2

Linea-Rondo CFX Double Pole Switches
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX BC/BK 1g 20AX DP Rkr + N BC/BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
