L-Ron CFX BC/N 2g LEDITB100 2 way Dim BC

L-Ron CFX BC/N 2g LEDITB100 2 way Dim BC
L-Ron CFX BC/N 2g LEDITB100 2 way Dim BC - Image 2
L-Ron CFX BC/N 2g LEDITB100 2 way Dim BC - Image 3

Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Bright Chrome Frame/Piano Black Front

Insert Finish

Bright Chrome

Description

Linea-Rondo CFX Bright Chrome Frame/Piano Black Front 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-012-002
Insert-Type

2 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Insert-Colour

Bright Chrome
Uf-ItmLabelTechInsert

2XLEDITB
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Piano Black Front 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Piano Black Front
EAN13-Barcode

5017504084387

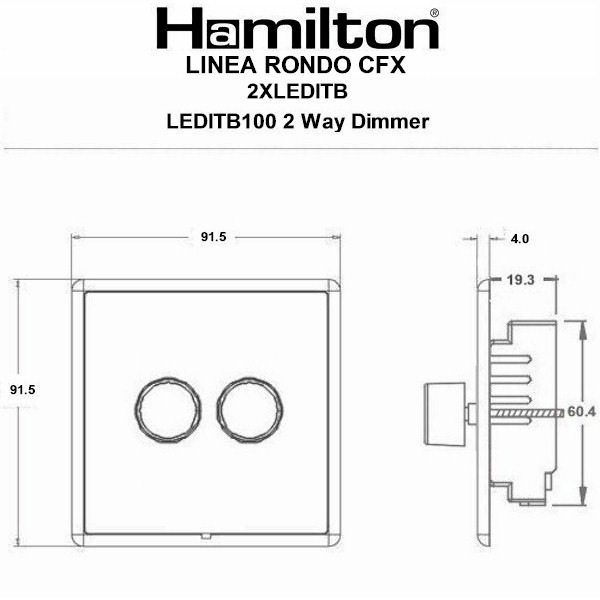

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Single
Current-Rating

0.3A Per Gang
Maximum-Load

5-70W Per Gang
Mains-Frequency

50Hz
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Item-Image

Dimension-Image

Luckins-TSI

403379367
Tech-Sheet-Page-Footer

LRX2XLEDITB100BC-N – Linea-Rondo CFX Bright Chrome Frame/Piano Black Front 2 gang 100W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
product-code

S LR BC-N
family-code

S RON-CFX
last-inv

16/12/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533384626
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

12
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Piano Black
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

2
MainInsertColour

Bright Chrome
TrimColour

n/a
Last-Updated-At-Hamilton

02/07/2026
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-70W Per Gang
Voltage

230V AC
IP-Rating

IP2XD
description

L-Ron CFX BC/N 2g LEDITB100 2 way Dim BC
Height

91.5mm
Width

91.5mm
Depth

4.0mm
Plate-Finish

Bright Chrome Frame/Piano Black Front
Subheader2

Linea-Rondo CFX Dimmers
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
