L-Ron CFX BC/BK 3g LEDITB250 2 wy Dim BC

L-Ron CFX BC/BK 3g LEDITB250 2 wy Dim BC
L-Ron CFX BC/BK 3g LEDITB250 2 wy Dim BC - Image 2
L-Ron CFX BC/BK 3g LEDITB250 2 wy Dim BC - Image 3

Type

3 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Bright Chrome Frame/Black Nickel Front

Insert Finish

Bright Chrome

Description

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 3 gang 250W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-011-003
Subheader2

Linea-Rondo CFX Dimmers
Insert-Type

3 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Bright Chrome Frame/Black Nickel Front
Insert-Colour

Bright Chrome
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

3XLEDITB250
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 3 gang 250W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
PlateFinish

Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front
EAN13-Barcode

5017504117283

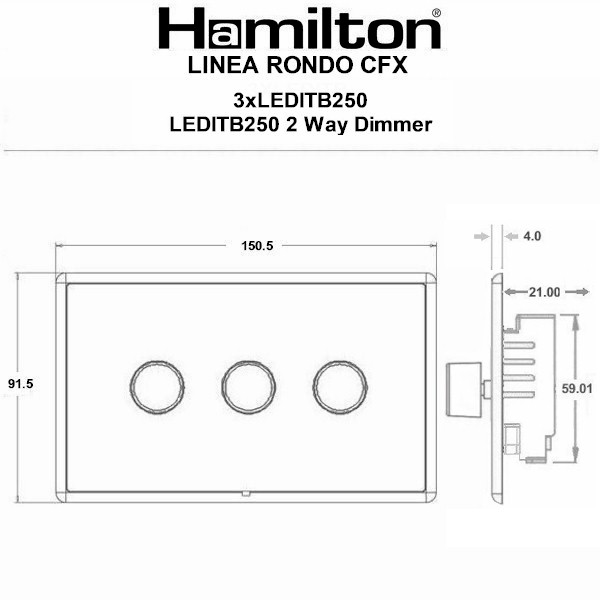

Dimensions(Nominal)

Double: Height = 91.5mm Width = 150.5mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-175W Per Gang
Switched-Poles

Single
Current-Rating

0.8A Per Gang
Voltage

230V AC
Maximum-Load

5-175W Per Gang
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436623789
Tech-Sheet-Page-Footer

LRX3XLEDITB250BC-BK – Linea-Rondo CFX Bright Chrome Frame/Black Nickel Front 3 gang 250W LED 2 Way Push On/Off Rotary Dimmer Bright Chrome
description

L-Ron CFX BC/BK 3g LEDITB250 2 wy Dim BC
product-code

S LR BC-BK
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533449998
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

11
InsertSortOrder

003
Generic-Size

Double
Height

91.5mm
Width

150.5mm
Depth

4.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

3
MainInsertColour

Bright Chrome
TrimColour

n/a
Last-Updated-At-Hamilton

02/10/2026
