L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL

L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL
L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL - Image 2
L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL - Image 3
L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL - Image 4

Type

1 gang 13A Double Pole Fused Spur + Neon

Plate Finish

Satin Nickel Frame/Satin Steel Front

Insert Finish

Satin Steel/Black

Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 13A Double Pole Fused Spur and Neon Satin Steel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-026-002
Insert-Type

1 gang 13A Double Pole Fused Spur + Neon
Insert-Colour

Satin Steel/Black
Uf-ItmLabelTechInsert

SPN
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 13A Double Pole Fused Spur and Neon Satin Steel/Black
PlateFinish

Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front
EAN13-Barcode

5017504526924

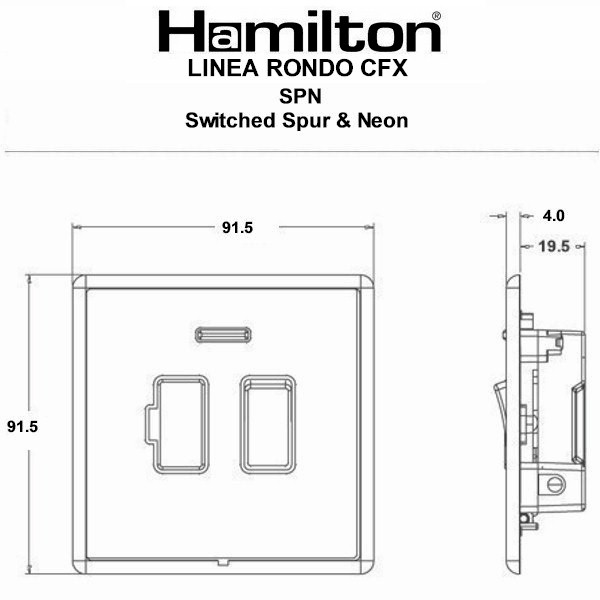

Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

Double
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

2x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-4
Commodity-Code

85363010
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

391689046
Tech-Sheet-Page-Footer

LRXSPNSN-SSB – Linea-Rondo CFX Satin Nickel Frame/Satin Steel Front 1 gang 13A Double Pole Fused Spur and Neon Satin Steel/Black
product-code

S LR SN-SS
family-code

S RON-CFX
last-inv

30/07/2025
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533258121
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

26
InsertSortOrder

002
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

Satin Nickel
WEB-InsertType

Double Pole Fused Spur + Neon
WEB-NumberofGangs

1
MainInsertColour

Satin Steel
TrimColour

Black
Last-Updated-At-Hamilton

31/12/2025
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Satin Nickel Frame/Satin Steel Front
Subheader2

Linea-Rondo CFX Connection Units
QR-Instruction

https://online.fliphtml5.com/Hamilton/jfee/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX SN/SS Fuse Sp(DP)+N 13A SS/BL
Height

91.5mm
Width

91.5mm
Depth

4.0mm
