Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red
Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red - Image 2
Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red - Image 3

Type

1 gang 13A Fuse with Neon Halo

Plate Finish

Richmond Bronze Frame/Richmond Bronze Front

Insert Finish

Richmond Bronze/Red

Description

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-026-013
Insert-Type

1 gang 13A Fuse with Neon Halo
Insert-Colour

Richmond Bronze/Red
Uf-ItmLabelTechInsert

FN
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red
PlateFinish

Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front
EAN13-Barcode

5017504058050
Dimensions(Nominal)

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

None
Current-Rating

13 Amp
Maximum-Load

13 Amp
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

2x4mm² Multi-Strand
Terminal-Capacity-3

1x6mm²
Earth-Terminal-Capacity-1

6x1mm²
Earth-Terminal-Capacity-2

5 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

2 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733 with Fuse link to BS 1362
Commodity-Code

85361050

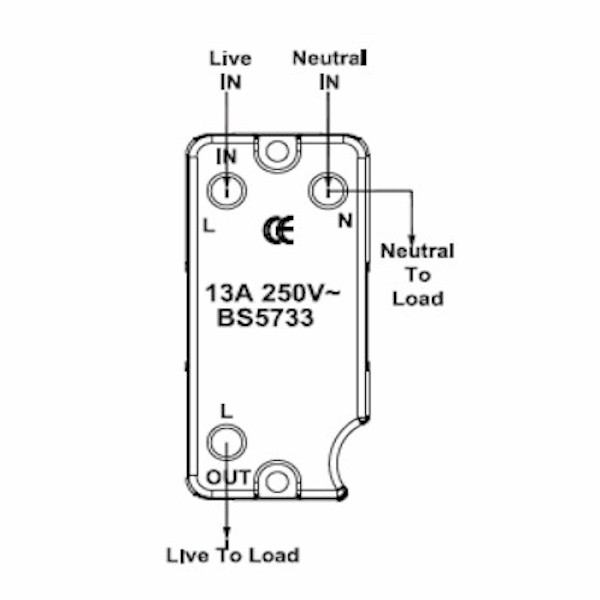

Wiring-Image

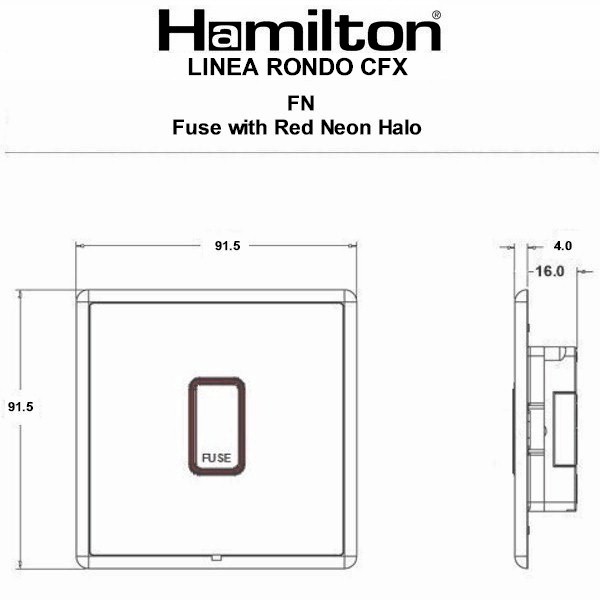

Dimension-Image

Luckins-TSI

398640790
Tech-Sheet-Page-Footer

LRXFNRB-RBR – Linea-Rondo CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 13A Fuse with Neon Halo Richmond Bronze/Red
product-code

S LR RB-RB
family-code

S RON-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533350689
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

001
HAM-SortOrder

026
InsertSortOrder

013
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

Richmond Bronze
WEB-InsertType

Fuse with Neon Halo
WEB-NumberofGangs

1
MainInsertColour

Richmond Bronze
TrimColour

Red
Last-Updated-At-Hamilton

05/12/25
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Plate-Finish

Richmond Bronze Frame/Richmond Bronze Front
Subheader2

Linea-Rondo CFX Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/srhp/#p=1
Voltage

220/250V AC
IP-Rating

IP2XD
description

L-Ron CFX RB/RB 13A Fuse Red N-Halo RB/R
Height

91.5mm
Width

91.5mm
Depth

4.0mm
