L-Ron CFX SB/SB Single Blank Plate

L-Ron CFX SB/SB Single Blank Plate
L-Ron CFX SB/SB Single Blank Plate - Image 2
L-Ron CFX SB/SB Single Blank Plate - Image 3

Type

Single Blank Plate

Plate Finish

Satin Brass Frame/Satin Brass Front

Insert Finish

N/A

Description

Linea-Rondo CFX Satin Brass Frame/Satin Brass Front Single Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Rondo CFX
Page-Sort-Order

001-036-001
Insert-Type

Single Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPS
Uf-HAM-Plate-Range

Linea-Rondo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Rondo CFX
Patents-And-Trade-Marks
Item-Long-Description

Linea-Rondo CFX Satin Brass Frame/Satin Brass Front Single Blank Plate
PlateFinish

Linea-Rondo CFX Satin Brass Frame/Satin Brass Front
EAN13-Barcode

5017504459888
Dimensions(Nominal)

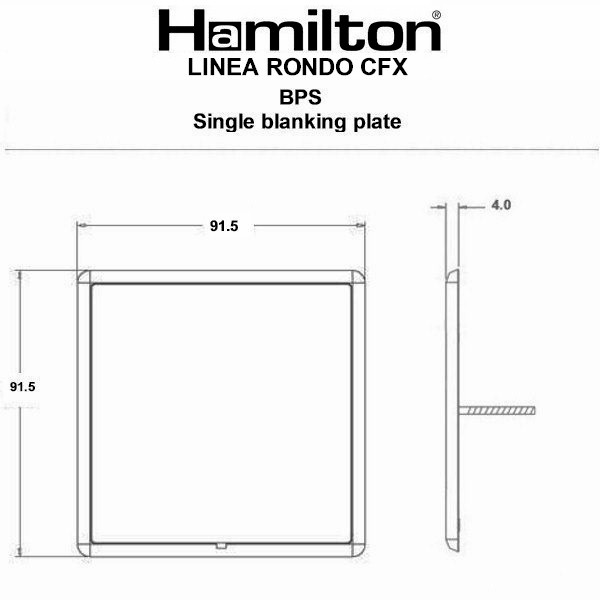

Single: Height = 91.5mm Width = 91.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

391677786
Tech-Sheet-Page-Footer

LRXBPSSB-SB – Linea-Rondo CFX Satin Brass Frame/Satin Brass Front Single Blank Plate
product-code

S LR SB-SB
family-code

S RON-CFX
last-inv

17/01/2025
unit-weight

194.00000
weight-units

GR
Uf-LuckinsEDP

4533247365
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

1
HAM-SortOrder

36
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Satin Brass
WEB-InsertType

Plate
WEB-NumberofGangs

Single Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

31/12/2025
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Satin Brass Frame/Satin Brass Front
Subheader2

Linea-Rondo CFX Blank Plates
Weight

194 GR
IP-Rating

IP2XB
description

L-Ron CFX SB/SB Single Blank Plate
Height

91.5mm
Width

91.5mm
Depth

4.0mm

Download datasheet
