Description
Linea-Perlina CFX Antique Brass Frame/Antique Brass Front 2 gang RJ12 Outlet – Unshielded Black
L-Per CFX AB/AB 2g RJ12 Unshielded BL
SKU: LPX2J12ABABB
Category: Linea-Perlina CFX Television / Data
SKU: LPX2J12ABABB
Category: Linea-Perlina CFX Television / Data
Type
2 gang RJ12 Outlet - UnshieldedPlate Finish
Antique Brass Frame/Antique Brass FrontInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Perlina CFX |
| Page-Sort-Order | 004-033-012 |
| Insert-Type | 2 gang RJ12 Outlet – Unshielded |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | 2J12 |
| Uf-HAM-Plate-Range | Linea-Perlina CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Linea-Perlina CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588 |
| Item-Long-Description | Linea-Perlina CFX Antique Brass Frame/Antique Brass Front 2 gang RJ12 Outlet – Unshielded Black |
| PlateFinish | Linea-Perlina CFX Antique Brass Frame/Antique Brass Front |
| EAN13-Barcode | 5017504861568 |
| Dimensions(Nominal) | Single: Height = 92.0mm Width = 92.0mm Depth = 4.0mm |
| Switched-Poles | N/A |
| Contact-Gap-Minimum | N/A |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 3 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 Multi-strand |
| Earth-Terminal-Capacity-5 | 1 x 6mm2 |
| Product-Class-1 | Must be earthed (ref BS7671 415.2.1) |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | N/A |
| EuroFix-Additional-Notes | Can be used as either RJ11 (4 wires) or RJ12 (6 wires) |
| Commodity-Code | 85176990 |
| Wiring-Image | WDRJ12.jpg |
| Item-Image | LPX2J12AB-ABB.jpg |

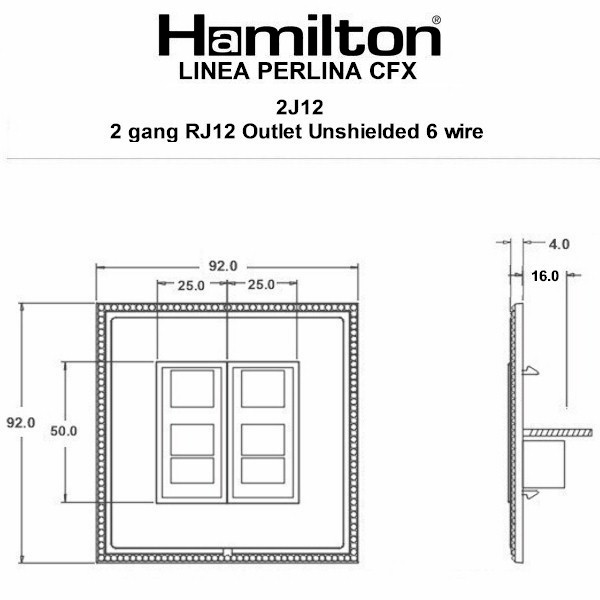

| Dimension-Image | TD-LPX2J12.jpg |
| Luckins-TSI | 391656370 |
| Tech-Sheet-Page-Footer | LPX2J12AB-ABB – Linea-Perlina CFX Antique Brass Frame/Antique Brass Front 2 gang RJ12 Outlet – Unshielded Black |
| product-code | S LP AB-AB |
| family-code | S PER-CFX |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533239043 |
| Uf-HAMInnerBoxQty | 4 |
| Uf-OuterBoxQty | 40 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 4 |
| HAM-SortOrder | 33 |
| InsertSortOrder | 012 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | Antique Brass |
| WEB-InsertType | RJ12 – Unshielded |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 02/10/2026 |
| Current-Rating | n/a |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| IP-Rating | IP2XD |
| description | L-Per CFX AB/AB 2g RJ12 Unshielded BL |
| Height | 92.0mm |
| Width | 92.0mm |
| Depth | 4.0mm |
| Plate-Finish | Antique Brass Frame/Antique Brass Front |
| Subheader2 | Linea-Perlina CFX Television / Data |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfyq/#p=1 |
Download datasheet
