Linea-Perlina CFX Etrium Bronze Frame/Etrium Bronze Front 1 gang 2A Unswitched Socket Black
SKU: LPXUS2EBEBB
Category: Linea-Perlina CFX Power Sockets
Type
1 gang 2A Unswitched SocketPlate Finish
Etrium Bronze Frame/Etrium Bronze FrontInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Perlina CFX |
| Page-Sort-Order | 004-021-008 |
| Insert-Type | 1 gang 2A Unswitched Socket |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | US2 |
| Uf-HAM-Plate-Range | Linea-Perlina CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Linea-Perlina CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588 |
| Item-Long-Description | Linea-Perlina CFX Etrium Bronze Frame/Etrium Bronze Front 1 gang 2A Unswitched Socket Black |
| PlateFinish | Linea-Perlina CFX Etrium Bronze Frame/Etrium Bronze Front |
| EAN13-Barcode | 5017504054199 |

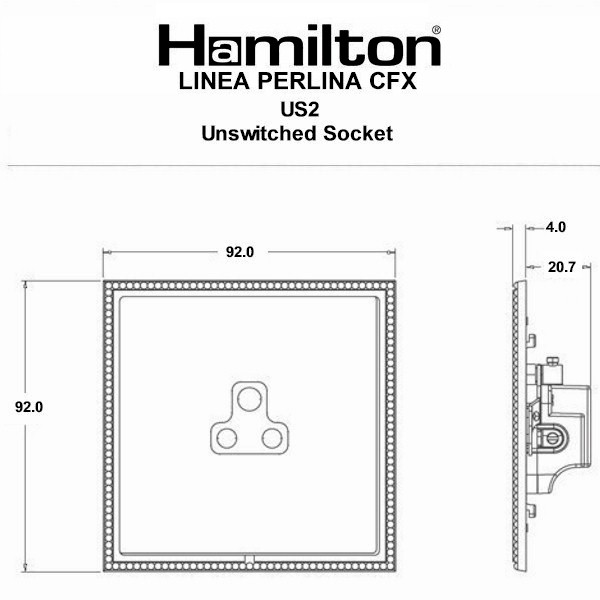

| Dimensions(Nominal) | Single: Height = 92.0mm Width = 92.0mm Depth = 4.0mm |
| Switched-Poles | None |
| Current-Rating | 2 Amp |
| Maximum-Load | 2 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 2×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 2 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 546 |
| Additional-Notes | Shuttered: Yes |
| Commodity-Code | 85366990 |
| Wiring-Image | WDUS2.jpg |
| Dimension-Image | TD-LPXUS2.jpg |
| Luckins-TSI | 398637635 |
| Tech-Sheet-Page-Footer | LPXUS2EB-EBB – Linea-Perlina CFX Etrium Bronze Frame/Etrium Bronze Front 1 gang 2A Unswitched Socket Black |
| product-code | S LP EB-EB |
| family-code | S PER-CFX |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533348866 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 24 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 004 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 008 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Etrium Bronze |
| Uf-HAMFrameFinish | Etrium Bronze |
| WEB-InsertType | Unswitched Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 10/02/26 |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Etrium Bronze Frame/Etrium Bronze Front |
| Subheader2 | Linea-Perlina CFX Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/nrql/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | L-Per CFX EB/EB 1g 2A Unswt Skt BL |
| Height | 92.0mm |
| Width | 92.0mm |
| Depth | 4.0mm |
