Description
Linea-Perlina CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black
L-Per CFX RB/RB 10A (6AX) Card Swt RB/BL
SKU: LPXC11RBRBB
Category: Linea-Perlina CFX Key Card Switches
SKU: LPXC11RBRBB
Category: Linea-Perlina CFX Key Card Switches
Type
1 gang 10A (6AX) Card Switch On/Off with Blue LED LocatorPlate Finish
Richmond Bronze Frame/Richmond Bronze FrontInsert Finish
Richmond Bronze/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Perlina CFX |
| Page-Sort-Order | 004-038-001 |
| Insert-Type | 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator |
| Insert-Colour | Richmond Bronze/Black |
| Uf-ItmLabelTechInsert | C11 |
| Uf-HAM-Plate-Range | Linea-Perlina CFX |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Linea-Perlina CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588 |
| Item-Long-Description | Linea-Perlina CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black |
| PlateFinish | Linea-Perlina CFX Richmond Bronze Frame/Richmond Bronze Front |
| EAN13-Barcode | 5017504050542 |

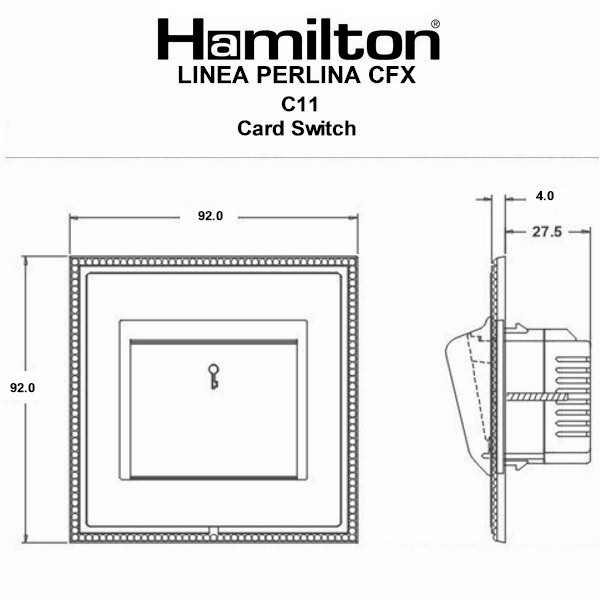

| Dimensions(Nominal) | Single: Height = 92.0mm Width = 92.0mm Depth = 4.0mm |
| Switched-Poles | Single |
| Current-Rating | 10A (6AX) |
| Maximum-Load | 10 Amp (6 Amp inductive) |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 3x1mm² |
| Terminal-Capacity-2 | 2×1.5mm² |
| Terminal-Capacity-3 | 1×2.5mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4 x 1.5mm2 |
| Earth-Terminal-Capacity-3 | 3 x 2.5mm2 |
| Earth-Terminal-Capacity-4 | 1 x 4mm2 Multi-strand |
| Earth-Terminal-Capacity-5 | 1 x 6mm2 |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-2-3 |
| Additional-Notes | Adjustable Time Delay 10 seconds – 5 minutes. Suitable for 44mm and 54mm width Hotel Key Cards |
| Commodity-Code | 85363010 |
| Wiring-Image | WDC11.jpg |
| Dimension-Image | TD-LPXC11.jpg |
| Luckins-TSI | 398630331 |
| Tech-Sheet-Page-Footer | LPXC11RB-RBB – Linea-Perlina CFX Richmond Bronze Frame/Richmond Bronze Front 1 gang 10A (6AX) Card Switch On/Off with Blue LED Locator Richmond Bronze/Black |
| product-code | S LP RB-RB |
| family-code | S PER-CFX |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533346884 |
| Uf-HAMInnerBoxQty | 4 |
| Uf-OuterBoxQty | 40 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 4 |
| HAM-SortOrder | 38 |
| InsertSortOrder | 001 |
| Generic-Size | Single |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Richmond Bronze |
| Uf-HAMFrameFinish | Richmond Bronze |
| WEB-InsertType | Key Card |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Richmond Bronze |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 03/02/2026 |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Richmond Bronze Frame/Richmond Bronze Front |
| Subheader2 | Linea-Perlina CFX Key Card Switches |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/mmdg/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| Height | 92.0mm |
| Width | 92.0mm |
| Depth | 4.0mm |
