L-Per CFX AB/SB 3 Euro Apert 75×50+Grid

SKU: LPXEURO3ABSB Category:
L-Per CFX AB/SB 3 Euro Apert 75x50+Grid
L-Per CFX AB/SB 3 Euro Apert 75x50+Grid - Image 2
L-Per CFX AB/SB 3 Euro Apert 75x50+Grid - Image 3
SKU: LPXEURO3ABSB Category:

Type

3 gang EuroFix 75x50mm Apertured Plate with Grid

Plate Finish

Antique Brass Frame/Satin Brass Front

Insert Finish

N/A

Description

Linea-Perlina CFX EuroFix Antique Brass Frame/Satin Brass Front Double Plate complete with 3 EuroFix Apertures 75x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Perlina CFX
Page-Sort-Order

004-046-003
Insert-Type

3 gang EuroFix 75x50mm Apertured Plate with Grid
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO3
Uf-HAM-Plate-Range

Linea-Perlina CFX EuroFix
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Perlina CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Perlina CFX EuroFix Antique Brass Frame/Satin Brass Front Double Plate complete with 3 EuroFix Apertures 75x50mm and Grid
PlateFinish

Linea-Perlina CFX EuroFix Antique Brass Frame/Satin Brass Front
EAN13-Barcode

5017504051457

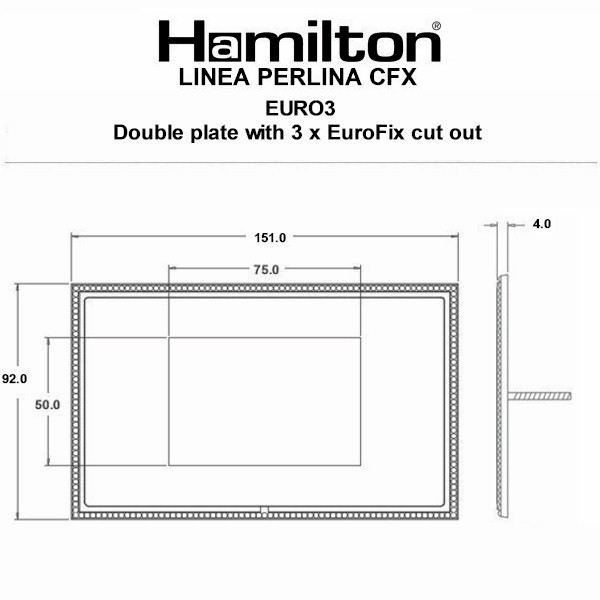

Dimensions(Nominal)

Double: Height = 92.0mm Width = 151.0mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

393793574
Tech-Sheet-Page-Footer

LPXEURO3AB-SB – Linea-Perlina CFX EuroFix Antique Brass Frame/Satin Brass Front Double Plate complete with 3 EuroFix Apertures 75x50mm and Grid
product-code

S EF AB-SB
family-code

S PER-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533288285
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

4
HAM-SortOrder

46
InsertSortOrder

003
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Plate
WEB-NumberofGangs

3
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

29/01/2026
Current-Rating

Insert Specific
Maximum-Load

Insert Specific
Wiring-Image

last-inv

21/07/2021
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Inserts
Voltage

Insert Specific
IP-Rating

IPXXB
description

L-Per CFX AB/SB 3 Euro Apert 75×50+Grid
Height

92.0mm
Width

151.0mm
Depth

4.0mm
Plate-Finish

Antique Brass Frame/Satin Brass Front
Subheader2

Linea-Perlina CFX Eurofix
