L-Per CFX PB/AB 1g LEDITB250 2 wy Dim PB

SKU: LPX1XLEDITB250PBAB Category:
L-Per CFX PB/AB 1g LEDITB250 2 wy Dim PB
L-Per CFX PB/AB 1g LEDITB250 2 wy Dim PB - Image 2
L-Per CFX PB/AB 1g LEDITB250 2 wy Dim PB - Image 3
SKU: LPX1XLEDITB250PBAB Category:

Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer

Plate Finish

Polished Brass Frame/Antique Brass Front

Insert Finish

Polished Brass

Description

Linea-Perlina CFX Polished Brass Frame/Antique Brass Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Polished Brass

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Perlina CFX
Page-Sort-Order

004-011-001
Subheader2

Linea-Perlina CFX Dimmers
Insert-Type

1 gang 250W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Switching Dimmer
Plate-Finish

Polished Brass Frame/Antique Brass Front
Insert-Colour

Polished Brass
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

1XLEDITB250
Uf-HAM-Plate-Range

Linea-Perlina CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Perlina CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Perlina CFX SS2 is a UK Registered Design Certificate No. 2066588
Item-Long-Description

Linea-Perlina CFX Polished Brass Frame/Antique Brass Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
PlateFinish

Linea-Perlina CFX Polished Brass Frame/Antique Brass Front
EAN13-Barcode

5017504116330
Dimensions(Nominal)

Single: Height = 92.0mm Width = 92.0mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Wattage

5-250W
Switched-Poles

Single
Current-Rating

1 Amp
Voltage

230V AC
Maximum-Load

5-250W
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

Item-Image

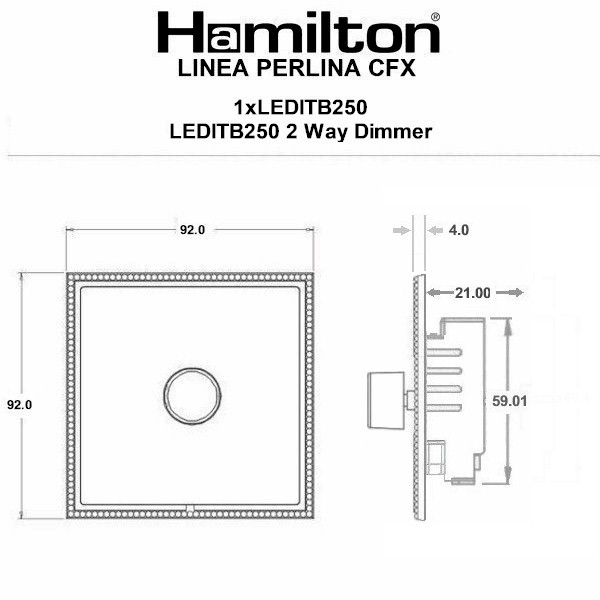

Dimension-Image

Luckins-TSI

436622829
Tech-Sheet-Page-Footer

LPX1XLEDITB250PB-AB – Linea-Perlina CFX Polished Brass Frame/Antique Brass Front 1 gang 250W LED 2 Way Push On/Off Rotary Dimmer Polished Brass
description

L-Per CFX PB/AB 1g LEDITB250 2 wy Dim PB
product-code

S LP PB-AB
family-code

S PER-CFX
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533449037
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

4
HAM-SortOrder

11
InsertSortOrder

001
Generic-Size

Single
Height

92.0mm
Width

92.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Polished Brass
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

Polished Brass
TrimColour

n/a
Last-Updated-At-Hamilton

02/07/2026

Download datasheet
