L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL

SKU: LGXTVABPBB Category:
L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL
L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL - Image 2
L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL - Image 3
L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL - Image 4
SKU: LGXTVABPBB Category:

Type

1 gang Non-Isolated TV 1in/1out

Plate Finish

Antique Brass Frame/Polished Brass Front

Insert Finish

Black

Description

Linea-Georgian CFX Antique Brass Frame/Polished Brass Front 1 gang Non-Isolated Television 1in/1out Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Georgian CFX
Page-Sort-Order

005-032-001
Insert-Type

1 gang Non-Isolated TV 1in/1out
Insert-Colour

Black
Uf-ItmLabelTechInsert

TV
Uf-HAM-Plate-Range

Linea-Georgian CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Georgian CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Georgian CFX is a UK Registered Design Certificate No. R21 = 2078674 SS2 = 2078673
Item-Long-Description

Linea-Georgian CFX Antique Brass Frame/Polished Brass Front 1 gang Non-Isolated Television 1in/1out Black
PlateFinish

Linea-Georgian CFX Antique Brass Frame/Polished Brass Front
EAN13-Barcode

5017504771607
Dimensions(Nominal)

Single: Height = 95.5mm Width = 95.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733
Commodity-Code

85367000
Wiring-Image

Item-Image

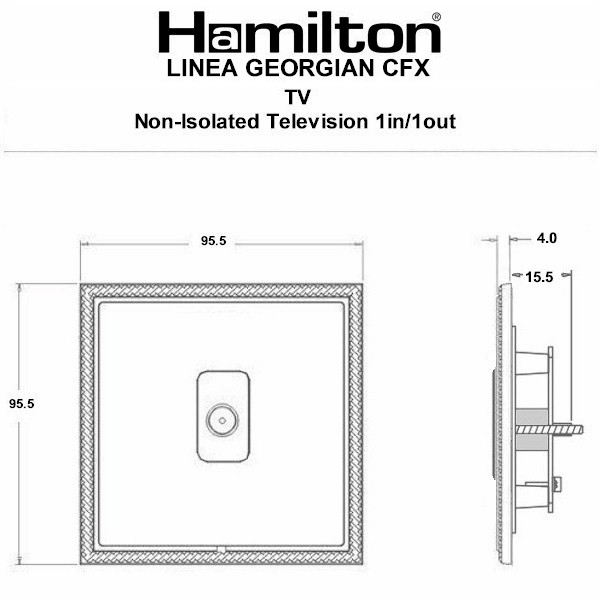

Dimension-Image

Luckins-TSI

391638275
Tech-Sheet-Page-Footer

LGXTVAB-PBB – Linea-Georgian CFX Antique Brass Frame/Polished Brass Front 1 gang Non-Isolated Television 1in/1out Black
product-code

S LG AB-PB
family-code

S GEO-CFX
last-inv

25/04/2018
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533232163
Uf-HAMInnerBoxQty

4
Uf-OuterBoxQty

40
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

5
HAM-SortOrder

32
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Polished Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

TV Non-Isolated
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

25mm
IP-Rating

IP2XD
description

L-Geo CFX AB/PB 1g N-Isol TV 1in/1out BL
Height

95.5mm
Width

95.5mm
Depth

4.0mm
Plate-Finish

Antique Brass Frame/Polished Brass Front
Subheader2

Linea-Georgian CFX Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
