Description
Linea-Georgian CFX Polished Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket Polished Brass/White
SKU: LGXSS2PBABW
Category: Linea-Georgian CFX Power Sockets
Type
2 gang 13A Double Pole Switched SocketPlate Finish
Polished Brass Frame/Antique Brass FrontInsert Finish
Polished Brass/WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Georgian CFX |
| Page-Sort-Order | 005-021-002 |
| Insert-Type | 2 gang 13A Double Pole Switched Socket |
| Insert-Colour | Polished Brass/White |
| Uf-ItmLabelTechInsert | SS2 |
| Uf-HAM-Plate-Range | Linea-Georgian CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Linea-Georgian CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Georgian CFX is a UK Registered Design Certificate No. R21 = 2078674 SS2 = 2078673 |
| Item-Long-Description | Linea-Georgian CFX Polished Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket Polished Brass/White |
| PlateFinish | Linea-Georgian CFX Polished Brass Frame/Antique Brass Front |
| EAN13-Barcode | 5017504823023 |

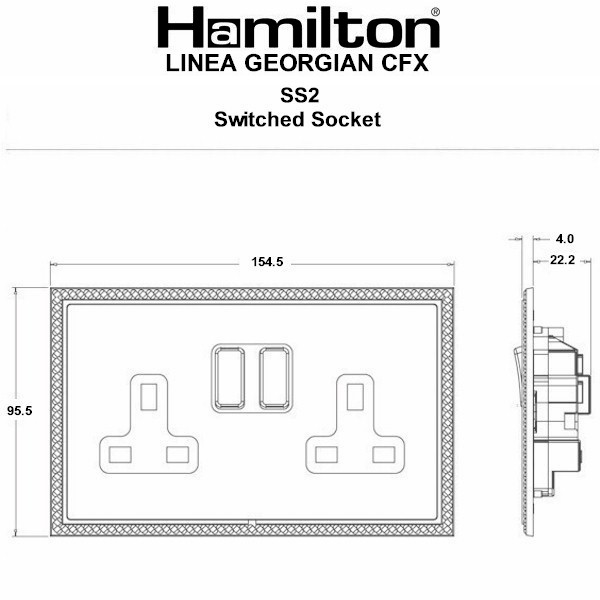

| Dimensions(Nominal) | Double: Height = 95.5mm Width = 154.5mm Depth = 4.0mm |
| Switched-Poles | Double |
| Current-Rating | 13 Amp |
| Maximum-Load | 13 Amp |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 4×2.5mm² |
| Terminal-Capacity-2 | 3x4mm² |
| Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Terminal-Capacity-4 | 1x10mm² |
| Earth-Terminal-Capacity-1 | 4×2.5mm² |
| Earth-Terminal-Capacity-2 | 3x4mm² |
| Earth-Terminal-Capacity-3 | 2x6mm² Multi-Strand |
| Earth-Terminal-Capacity-4 | 1x10mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS 1363-2 |
| Additional-Notes | Dual Earth: Yes |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSS2.jpg |
| Item-Image | LGXSS2PB-ABW.jpg |
| Dimension-Image | TD-LGXSS2.jpg |
| Luckins-TSI | 391637849 |
| Tech-Sheet-Page-Footer | LGXSS2PB-ABW – Linea-Georgian CFX Polished Brass Frame/Antique Brass Front 2 gang 13A Double Pole Switched Socket Polished Brass/White |
| product-code | S LG PB-AB |
| family-code | S GEO-CFX |
| last-inv | 30/01/18 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-LuckinsEDP | 4533231740 |
| Uf-HAMInnerBoxQty | 1 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 005 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 002 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | Polished Brass |
| WEB-InsertType | Switched Socket |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Polished Brass |
| TrimColour | White |
| Last-Updated-At-Hamilton | 10/02/26 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Plate-Finish | Polished Brass Frame/Antique Brass Front |
| Subheader2 | Linea-Georgian CFX Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/dcop/#p=1 |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | L-Geo CFX PB/AB 2g 13A DP Swt Skt PB/WH |
| Height | 95.5mm |
| Width | 154.5mm |
| Depth | 4.0mm |
Download datasheet
