L-Geo CFX PB/SB Double Blank Plate

SKU: LGXBPDPBSB Category:
L-Geo CFX PB/SB Double Blank Plate
L-Geo CFX PB/SB Double Blank Plate - Image 2
L-Geo CFX PB/SB Double Blank Plate - Image 3
SKU: LGXBPDPBSB Category:

Type

Double Blank Plate

Plate Finish

Polished Brass Frame/Satin Brass Front

Insert Finish

N/A

Description

Linea-Georgian CFX Polished Brass Frame/Satin Brass Front Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Georgian CFX
Page-Sort-Order

005-036-002
Insert-Type

Double Blank Plate
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Linea-Georgian CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Georgian CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Georgian CFX is a UK Registered Design Certificate No. R21 = 2078674 SS2 = 2078673
Item-Long-Description

Linea-Georgian CFX Polished Brass Frame/Satin Brass Front Double Blank Plate
PlateFinish

Linea-Georgian CFX Polished Brass Frame/Satin Brass Front
EAN13-Barcode

5017504819897
Dimensions(Nominal)

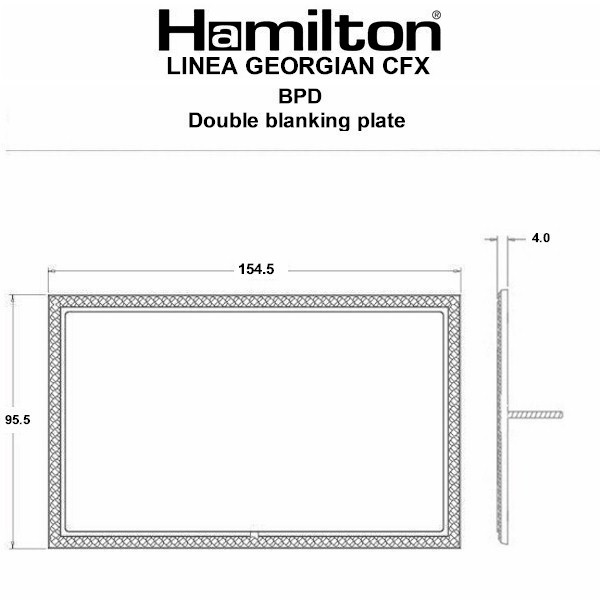

Double: Height = 95.5mm Width = 154.5mm Depth = 4.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

74192000
Item-Image

Dimension-Image

Luckins-TSI

391634363
Tech-Sheet-Page-Footer

LGXBPDPB-SB – Linea-Georgian CFX Polished Brass Frame/Satin Brass Front Double Blank Plate
product-code

S LG PB-SB
family-code

S GEO-CFX
last-inv

28/11/2025
unit-weight

351.00000
weight-units

GR
Uf-LuckinsEDP

4533228290
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

5
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Polished Brass
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

31/12/2025
Current-Rating

n/a
Wiring-Image

Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Plate-Finish

Polished Brass Frame/Satin Brass Front
Subheader2

Linea-Georgian CFX Blank Plates
Weight

351 GR
IP-Rating

IP2XB
description

L-Geo CFX PB/SB Double Blank Plate
Height

95.5mm
Width

154.5mm
Depth

4.0mm
