L-Duo CFX CB/CB DP SS2 + USBULTx2 CB/BL

SKU: LDSS2USBULTCBCBB Category:
L-Duo CFX CB/CB DP SS2 + USBULTx2 CB/BL
L-Duo CFX CB/CB DP SS2 + USBULTx2 CB/BL - Image 2
SKU: LDSS2USBULTCBCBB Category:

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Copper Bronze Frame/Copper Bronze Front

Insert Finish

Copper Bronze/Black

Description

Linea-Duo CFX Copper Bronze Frame/Copper Bronze Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Copper Bronze/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Duo CFX
Page-Sort-Order

007-023-001
Subheader2

Linea-Duo CFX USB Power Sockets
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Plate-Finish

Copper Bronze Frame/Copper Bronze Front
Insert-Colour

Copper Bronze/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Linea-Duo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Duo CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174
Item-Long-Description

Linea-Duo CFX Copper Bronze Frame/Copper Bronze Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Copper Bronze/Black
PlateFinish

Linea-Duo CFX Copper Bronze Frame/Copper Bronze Front
EAN13-Barcode

5017504115517

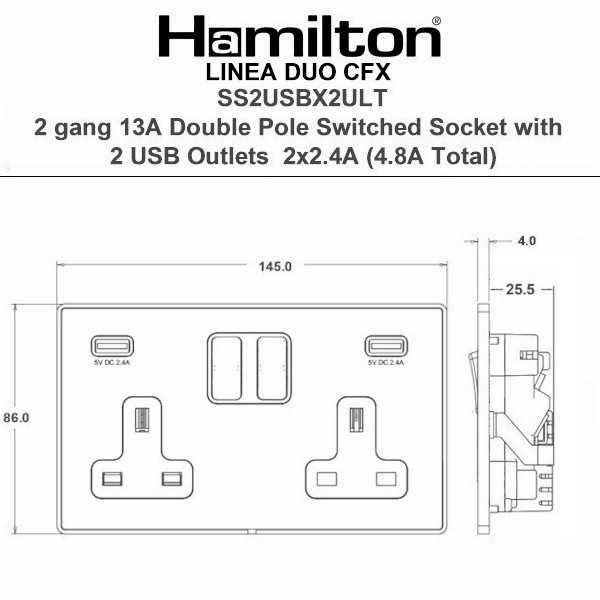

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Voltage

180/250V AC USB = 5V
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Dimension-Image

Luckins-TSI

436621972
Tech-Sheet-Page-Footer

LDSS2USBULTCB-CBB – Linea-Duo CFX Copper Bronze Frame/Copper Bronze Front 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Copper Bronze/Black
product-code

S LD CB-CB
family-code

S DUO-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533448180
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

20
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

23
InsertSortOrder

001
Generic-Size

Double
Height

86.0mm
Width

145.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Copper Bronze
Uf-HAMFrameFinish

Copper Bronze
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Copper Bronze
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
