Linea-Duo CFX Antique Brass Frame/Antique Brass Front 3 gang 20AX 2 Way Rocker Antique Brass/Black
SKU: LDR232ABABB
Category: Linea-Duo CFX Rocker Switches
Type
3 gang FL 20AX 2 Way RockerPlate Finish
Antique Brass Frame/Antique Brass FrontInsert Finish
Antique Brass/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Linea-Duo CFX |
| Page-Sort-Order | 007-001-013 |
| Subheader2 | Linea-Duo CFX Rocker Switches |
| Insert-Type | 3 gang FL 20AX 2 Way Rocker |
| Plate-Finish | Antique Brass Frame/Antique Brass Front |
| Insert-Colour | Antique Brass/Black |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/uzsv/#p=1 |
| Uf-ItmLabelTechInsert | R232-FL |
| Uf-HAM-Plate-Range | Linea-Duo CFX |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Linea-Duo CFX |
| Patents-And-Trade-Marks | Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174 |
| Item-Long-Description | Linea-Duo CFX Antique Brass Frame/Antique Brass Front 3 gang 20AX 2 Way Rocker Antique Brass/Black |
| PlateFinish | Linea-Duo CFX Antique Brass Frame/Antique Brass Front |
| EAN13-Barcode | 5017504182380 |
| Dimensions(Nominal) | Double: Height = 86.0mm Width = 145.0mm Depth = 4.0mm |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = CFX Clips |
| Minimum-Wall-Box-Depth | 35mm |
| Switched-Poles | Single |
| Current-Rating | 20AX |
| Voltage | 220/250V AC |
| Maximum-Load | 20 Amp inductive |
| Mains-Frequency | 50/60Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 6x1mm² |
| Terminal-Capacity-2 | 5×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 6x1mm² |
| Earth-Terminal-Capacity-2 | 5×1.5mm² |
| Earth-Terminal-Capacity-3 | 3×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Face plate must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |

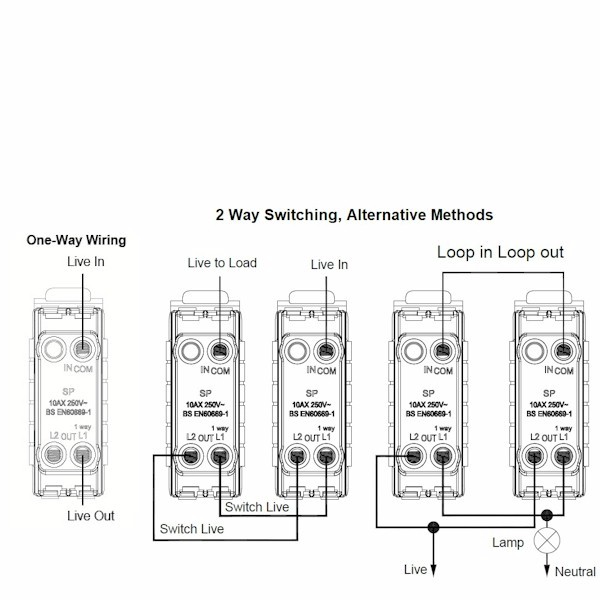

| Wiring-Image | WD2Wv2.jpg |
| Item-Image | LDR232AB-ABB.jpg |

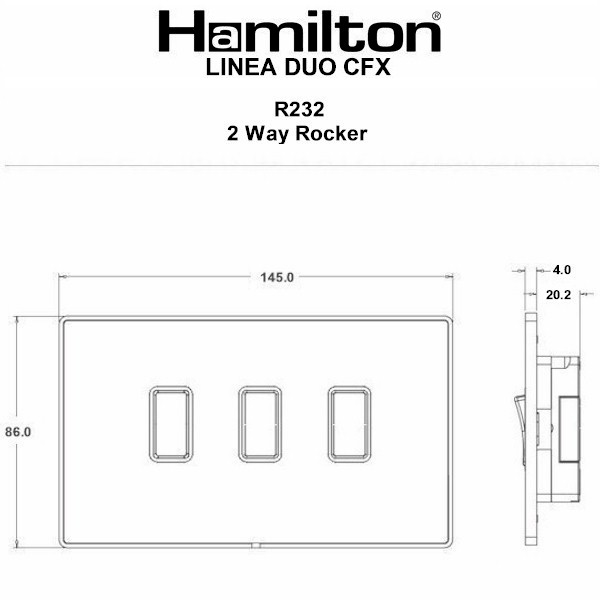

| Dimension-Image | TD-LDR232.jpg |
| Luckins-TSI | 389571739 |
| Tech-Sheet-Page-Footer | LDR232AB-ABB – Linea-Duo CFX Antique Brass Frame/Antique Brass Front 3 gang 20AX 2 Way Rocker Antique Brass/Black |
| product-code | S LD AB-AB |
| family-code | S DUO-CFX |
| last-inv | 04/08/2019 |
| unit-weight | 0.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533176782 |
| Uf-HAMInnerBoxQty | 3 |
| Uf-OuterBoxQty | 30 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 7 |
| HAM-SortOrder | 1 |
| InsertSortOrder | 013 |
| Generic-Size | Double |
| Height | 86.0mm |
| Width | 145.0mm |
| Depth | 4.0mm |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | CFX Clips |
| Module-Size-Depth | 23mm |
| Uf-HAMPlateFinish | Antique Brass |
| Uf-HAMFrameFinish | Antique Brass |
| WEB-InsertType | 2 Way |
| WEB-NumberofGangs | 3 |
| MainInsertColour | Antique Brass |
| TrimColour | Black |
