L-Duo CFX AB/AB 1g 13A DP Swt Skt AB/BL

SKU: LDSS1ABABB Category:
L-Duo CFX AB/AB 1g 13A DP Swt Skt AB/BL
L-Duo CFX AB/AB 1g 13A DP Swt Skt AB/BL - Image 2
L-Duo CFX AB/AB 1g 13A DP Swt Skt AB/BL - Image 3
SKU: LDSS1ABABB Category:

Type

1 gang 13A Double Pole Switched Socket

Plate Finish

Antique Brass Frame/Antique Brass Front

Insert Finish

Antique Brass/Black

Description

Linea-Duo CFX Antique Brass Frame/Antique Brass Front 1 gang 13A Double Pole Switched Socket Antique Brass/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Duo CFX
Page-Sort-Order

007-021-001
Subheader2

Linea-Duo CFX Power Sockets
Insert-Type

1 gang 13A Double Pole Switched Socket
Plate-Finish

Antique Brass Frame/Antique Brass Front
Insert-Colour

Antique Brass/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS1
Uf-HAM-Plate-Range

Linea-Duo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Duo CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174
Item-Long-Description

Linea-Duo CFX Antique Brass Frame/Antique Brass Front 1 gang 13A Double Pole Switched Socket Antique Brass/Black
PlateFinish

Linea-Duo CFX Antique Brass Frame/Antique Brass Front
EAN13-Barcode

5017504182014
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp
Voltage

220/250V AC
Maximum-Load

13 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

4×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Terminal-Capacity-4

1x10mm²
Earth-Terminal-Capacity-1

4×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-4

1x10mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 1363-2
Commodity-Code

85366990

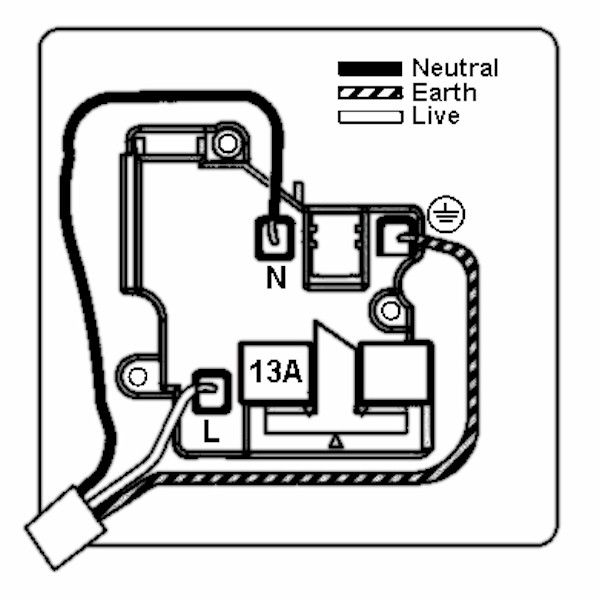

Wiring-Image

Item-Image

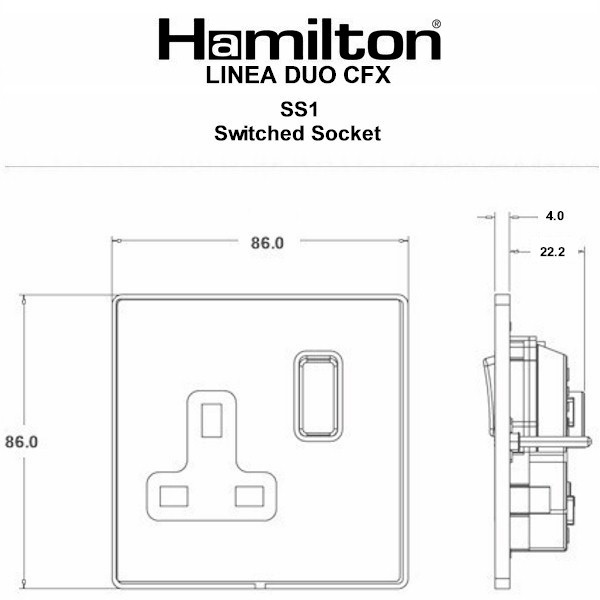

Dimension-Image

Luckins-TSI

389573410
Tech-Sheet-Page-Footer

LDSS1AB-ABB – Linea-Duo CFX Antique Brass Frame/Antique Brass Front 1 gang 13A Double Pole Switched Socket Antique Brass/Black
product-code

S LD AB-AB
family-code

S DUO-CFX
last-inv

30/08/2024
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533178450
Uf-HAMInnerBoxQty

1
Uf-OuterBoxQty

24
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

21
InsertSortOrder

001
Generic-Size

Single
Height

86.0mm
Width

86.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Switched Socket
WEB-NumberofGangs

1
MainInsertColour

Antique Brass
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026

Download datasheet
