L-Duo CFX AB/SB 1 Euro Apert 25×50+Grid

SKU: LDEURO1ABSB Category:
L-Duo CFX AB/SB 1 Euro Apert 25x50+Grid
L-Duo CFX AB/SB 1 Euro Apert 25x50+Grid - Image 2
L-Duo CFX AB/SB 1 Euro Apert 25x50+Grid - Image 3
SKU: LDEURO1ABSB Category:

Type

1 gang EuroFix 25x50mm Apertured Plate with Grid

Plate Finish

Antique Brass Frame/Satin Brass Front

Insert Finish

N/A

Description

Linea-Duo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Duo CFX
Page-Sort-Order

007-046-001
Subheader2

Linea-Duo CFX Eurofix
Insert-Type

1 gang EuroFix 25x50mm Apertured Plate with Grid
Plate-Finish

Antique Brass Frame/Satin Brass Front
Insert-Colour

N/A
Uf-ItmLabelTechInsert

EURO1
Uf-HAM-Plate-Range

Linea-Duo CFX EuroFix
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Duo CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174
Item-Long-Description

Linea-Duo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
PlateFinish

Linea-Duo CFX EuroFix Antique Brass Frame/Satin Brass Front
EAN13-Barcode

5017504039240
Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

As Per Insert
Switched-Poles

N/A
Current-Rating

Insert Specific
Voltage

Insert Specific
Maximum-Load

Insert Specific
IP-Rating

IPXXB
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

See EuroFix for a full range of inserts. Plates must be Earthed via the Earth Tag.
Commodity-Code

73269098
Wiring-Image

Item-Image

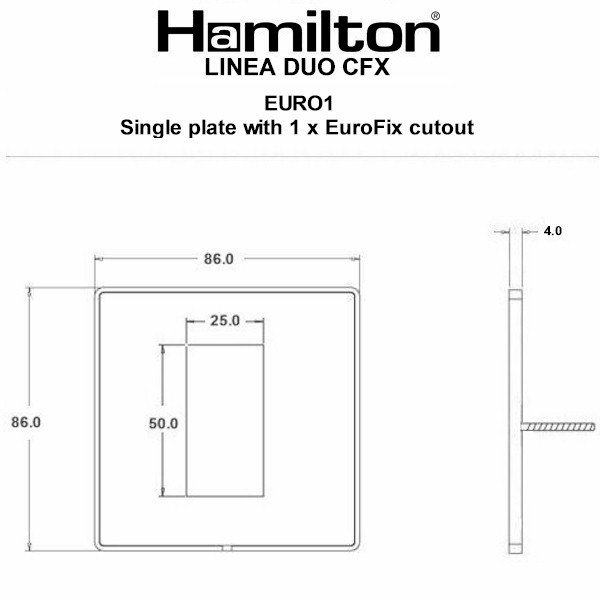

Dimension-Image

Luckins-TSI

393789067
Tech-Sheet-Page-Footer

LDEURO1AB-SB – Linea-Duo CFX EuroFix Antique Brass Frame/Satin Brass Front Single Plate complete with 1 EuroFix Aperture 25x50mm and Grid
product-code

S EF AB-SB
family-code

S DUO-CFX
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533283798
Uf-HAMInnerBoxQty

4
Uf-OuterBoxQty

40
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

46
InsertSortOrder

001
Generic-Size

Single
Height

86.0mm
Width

86.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Satin Brass
Uf-HAMFrameFinish

Antique Brass
WEB-InsertType

Plate
WEB-NumberofGangs

1
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

03/02/2026
