L-Duo CFX BC/BK 1g 45A DP+N Red Rkr/BL

SKU: LD45NBCBKB Category:
L-Duo CFX BC/BK 1g 45A DP+N Red Rkr/BL
L-Duo CFX BC/BK 1g 45A DP+N Red Rkr/BL - Image 2
L-Duo CFX BC/BK 1g 45A DP+N Red Rkr/BL - Image 3
SKU: LD45NBCBKB Category:

Type

1 gang 45A Double Pole Red Rocker + Neon

Plate Finish

Bright Chrome Frame/Black Nickel Front

Insert Finish

Red/Black

Description

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front 1 gang 45A Double Pole Rocker and Neon Red/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Duo CFX
Page-Sort-Order

007-027-012
Subheader2

Linea-Duo CFX Double Pole Switches
Insert-Type

1 gang 45A Double Pole Red Rocker + Neon
Plate-Finish

Bright Chrome Frame/Black Nickel Front
Insert-Colour

Red/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Uf-ItmLabelTechInsert

45N
Uf-HAM-Plate-Range

Linea-Duo CFX
Uf-HAMPlate-Generic-Size

Single
Range-Name

Linea-Duo CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174
Item-Long-Description

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front 1 gang 45A Double Pole Rocker and Neon Red/Black
PlateFinish

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front
EAN13-Barcode

5017504095710

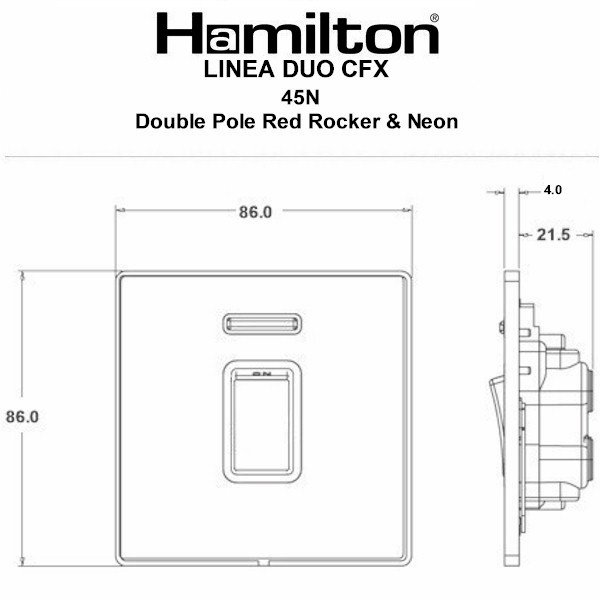

Dimensions(Nominal)

Single: Height = 86.0mm Width = 86.0mm Depth = 4.0mm
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

45 Amp
Voltage

220/250V AC
Maximum-Load

45 Amp
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3x6mm²
Terminal-Capacity-2

2x10mm²
Terminal-Capacity-3

1x16mm²
Earth-Terminal-Capacity-1

3x6mm²
Earth-Terminal-Capacity-2

2x10mm²
Earth-Terminal-Capacity-3

1x16mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

389580021
Tech-Sheet-Page-Footer

LD45NBC-BKB – Linea-Duo CFX Bright Chrome Frame/Black Nickel Front 1 gang 45A Double Pole Rocker and Neon Red/Black
product-code

S LD BC-BK
family-code

S DUO-CFX
last-inv

14/10/2015
unit-weight

0.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533180192
Uf-HAMInnerBoxQty

0
Uf-OuterBoxQty

0
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

27
InsertSortOrder

012
Generic-Size

Single
Height

86.0mm
Width

86.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Double Pole + Neon
WEB-NumberofGangs

1
MainInsertColour

Red
TrimColour

Black
Last-Updated-At-Hamilton

03/02/2026
