L-Duo CFX BC/BK Double Blank Plate

SKU: LDBPDBCBK Category:
L-Duo CFX BC/BK Double Blank Plate
L-Duo CFX BC/BK Double Blank Plate - Image 2
L-Duo CFX BC/BK Double Blank Plate - Image 3
SKU: LDBPDBCBK Category:

Type

Double Blank Plate

Plate Finish

Bright Chrome Frame/Black Nickel Front

Insert Finish

N/A

Description

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front Double Blank Plate

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Linea-Duo CFX
Page-Sort-Order

007-036-002
Subheader2

Linea-Duo CFX Blank Plates
Insert-Type

Double Blank Plate
Plate-Finish

Bright Chrome Frame/Black Nickel Front
Insert-Colour

N/A
Uf-ItmLabelTechInsert

BPD
Uf-HAM-Plate-Range

Linea-Duo CFX
Uf-HAMPlate-Generic-Size

Double
Range-Name

Linea-Duo CFX
Patents-And-Trade-Marks

Linea is a Registered Trade Mark No 2398665 CFX is a Registered Trade Mark No 2398667 Patent No. GB 2383375B Linea-Duo CFX is a UK Registered Design Certificate No: R21 = 3021173 SS2 = 3021174
Item-Long-Description

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front Double Blank Plate
PlateFinish

Linea-Duo CFX Bright Chrome Frame/Black Nickel Front
EAN13-Barcode

5017504099893

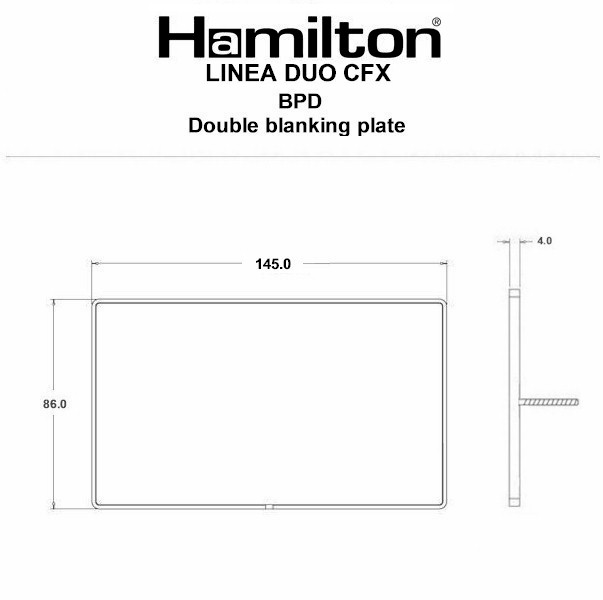

Dimensions(Nominal)

Double: Height = 86.0mm Width = 145.0mm Depth = 4.0mm
Weight

378 GR
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = CFX Clips
Minimum-Wall-Box-Depth

Any Box
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XB
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

N/A
Additional-Notes

Plates must be Earthed via the Earth Tag.
Commodity-Code

83024190
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

389580487
Tech-Sheet-Page-Footer

LDBPDBC-BK – Linea-Duo CFX Bright Chrome Frame/Black Nickel Front Double Blank Plate
product-code

S LD BC-BK
family-code

S DUO-CFX
last-inv

31/01/2017
unit-weight

378.00000
weight-units

GR
Uf-LuckinsEDP

4533180642
Uf-HAMInnerBoxQty

3
Uf-OuterBoxQty

30
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

7
HAM-SortOrder

36
InsertSortOrder

002
Generic-Size

Double
Height

86.0mm
Width

145.0mm
Depth

4.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

CFX Clips
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

Bright Chrome
WEB-InsertType

Plate
WEB-NumberofGangs

Double Plate
MainInsertColour

N
TrimColour

A
Last-Updated-At-Hamilton

03/02/2026

Download datasheet
