LEDITB100 2 way MOD + Kit WH

SKU: LEDITB100UGKITWH Category:
LEDITB100 2 way MOD + Kit WH
LEDITB100 2 way MOD + Kit WH - Image 2
SKU: LEDITB100UGKITWH Category:

Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Dimmer Module

Plate Finish

N/A

Insert Finish

White

Description

Dimmer Module Only – 100W LED 2 Way Push On/Off Rotary Dimmer c/w White Plastic Dimmer Knob suitable for Universal Grid.
Kit fits BG, Crabtree, Deta, Hager, Schneider, MK, Wandsworth grid ranges.

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

LED Dimmer Modules
Page-Sort-Order

040-012-011
Subheader2

Led Dimmer Modules
Insert-Type

1 gang 100W LED Trailing/Leading Edge Push On/Off Rotary 2 Way Dimmer Module
Plate-Finish

N/A
Insert-Colour

White
QR-Instruction

https://online.fliphtml5.com/Hamilton/vqhu/#p=1
Uf-ItmLabelTechInsert

DLEDITB
Uf-HAM-Plate-Range

Dimmer Module 1G
Uf-HAMPlate-Generic-Size

Module
Range-Name

LED Dimmer Modules
Item-Long-Description

Dimmer Module Only – 100W LED 2 Way Push On/Off Rotary Dimmer c/w White Plastic Dimmer Knob suitable for Universal Grid. Kit fits BG, Crabtree, Deta, Hager, Schneider, MK, Wandsworth grid ranges.
PlateFinish

Dimmer Module 1G N/A
EAN13-Barcode

5017503000739
Dimensions(Nominal)

Module: Height = Width = Depth =
Weight

43 GR
Wattage

5-100W
Switched-Poles

Single
Current-Rating

0.4 Amp
Voltage

230V-240V
Maximum-Load

5-100W
Mains-Frequency

50Hz
IP-Rating

IP2XD
Terminal-Capacity-1

2x1mm²
Terminal-Capacity-2

2×1.5mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Face plate must be earthed
Ambient-Operating-Temperatur

-5°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-2-1
Additional-Notes

Trailing Edge & Leading Edge Dimmer
Commodity-Code

85365005
Wiring-Image

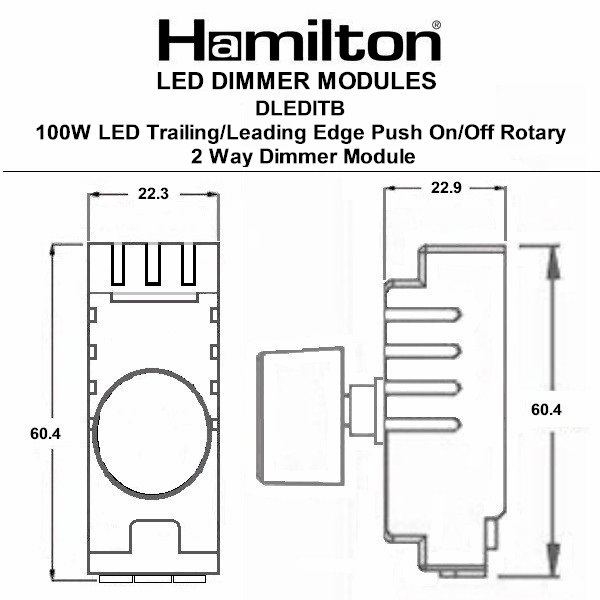

Dimension-Image

Luckins-TSI

438406807
Tech-Sheet-Page-Footer
description

LEDITB100 2 way MOD + Kit WH
product-code

S LEDSTAT
family-code

S LEDSTAT
last-inv

20/02/26
unit-weight

43.10000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533463880
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

040
HAM-SortOrder

012
InsertSortOrder

011
Generic-Size

Module
Uf-HAMPlateFinish

n/a
Uf-HAMFrameFinish

n/a
WEB-InsertType

Rotary 2 Way
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

20/02/26

Download datasheet
