Super Stockists

Hart BK SP SS1 + USBx1 BK/BL

Hart BK SP SS1 + USBx1 BK/BL
Hart BK SP SS1 + USBx1 BK/BL - Image 2
Hart BK SP SS1 + USBx1 BK/BL - Image 3

Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1x2.1A

Plate Finish

Black Nickel

Insert Finish

Black Nickel/Black

Description

Hartland Black Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black Nickel/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-022-001
Insert-Type

1 gang 13A Single Pole Switched Socket with 1 USB Outlet 1×2.1A
Insert-Colour

Black Nickel/Black
Uf-ItmLabelTechInsert

SS1USBX1
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Black Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black Nickel/Black
PlateFinish

Hartland Box Black Nickel
EAN13-Barcode

5017504089078

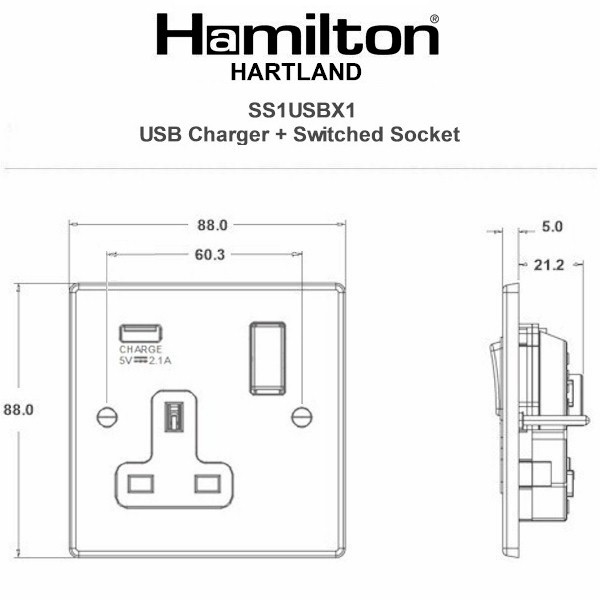

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

13 Amp, USB 1 x 2.1A
Maximum-Load

13 Amp, USB = 2.1A
Mains-Frequency

50/60Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Dimension-Image

Luckins-TSI

404387785
Tech-Sheet-Page-Footer

78SS1USBBK-B – Hartland Black Nickel 1 gang 13A Single Pole Switched Socket with 1 USB Outlets 1×2.1A Black Nickel/Black
product-code

S HART BK
family-code

S HARTLAND
last-inv

25/02/26
unit-weight

151.00000
weight-units

GR
Uf-LuckinsEDP

4533391800
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

022
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Black Nickel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Single Pole
WEB-NumberofGangs

1
MainInsertColour

Black Nickel
TrimColour

Black
Last-Updated-At-Hamilton

25/02/26

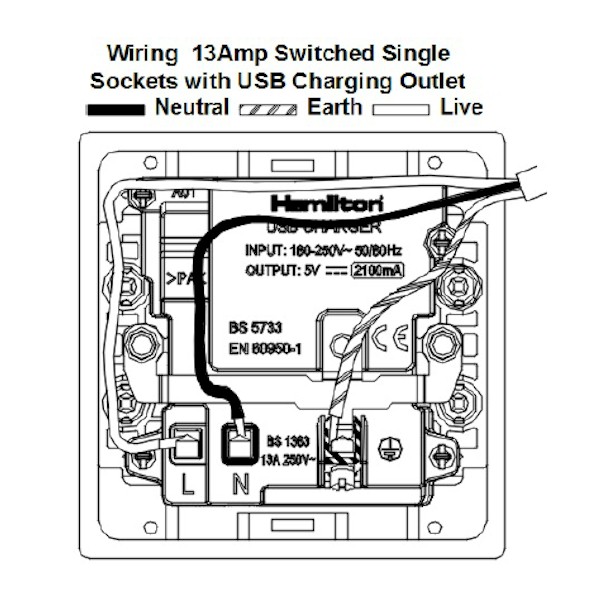

Wiring-Image

Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Weight

151 GR
Voltage

180/250V AC, USB = 5V
IP-Rating

IP2XD
description

Hart BK SP SS1 + USBx1 BK/BL
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Plate-Finish

Black Nickel
Subheader2

Hartland Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
