Super Stockists

Hart GA DP SS2 + USBULTx2 GA/QG

Hart GA DP SS2 + USBULTx2 GA/QG
Hart GA DP SS2 + USBULTx2 GA/QG - Image 2
Hart GA DP SS2 + USBULTx2 GA/QG - Image 3

Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2x2.4A (4.8A Total)

Plate Finish

Anthra Gray

Insert Finish

Anthra Gray/Quartz Grey

Description

Hartland Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-023-001
Subheader2

Hartland USB Power Sockets
Insert-Type

2 gang 13A Double Pole Switched Socket with 2 USB Outlets 2×2.4A (4.8A Total)
Plate-Finish

Anthra Gray
Insert-Colour

Anthra Gray/Quartz Grey
QR-Instruction

https://online.fliphtml5.com/Hamilton/dcop/#p=1
Uf-ItmLabelTechInsert

SS2USBX2ULT
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Double
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey
PlateFinish

Hartland Box Anthra Gray
EAN13-Barcode

5017504108151

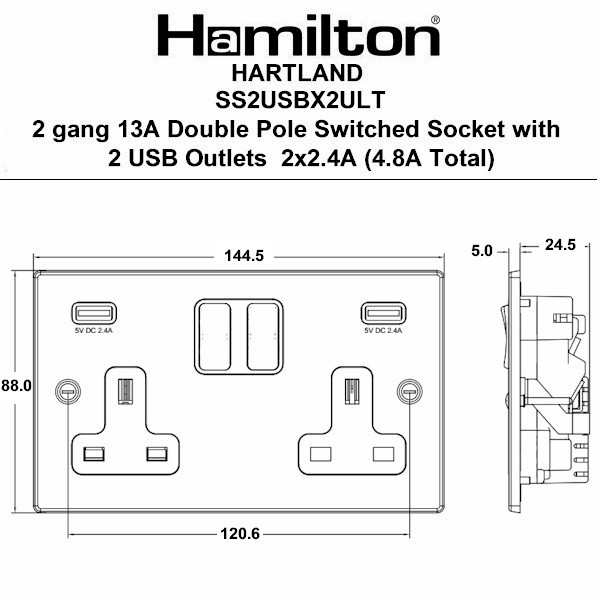

Dimensions(Nominal)

Double: Height = 88.0mm Width = 144.5mm Depth = 5.0mm
Fixing-Hole-Centres

Box Fixing = 120.6mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
Switched-Poles

Double
Current-Rating

13 Amp, USB 2 x 2.4A
Voltage

180/250V AC USB = 5V
Maximum-Load

13 Amp, USB = 2.4A X 2
Mains-Frequency

50/60Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

3×2.5mm²
Terminal-Capacity-2

3x4mm²
Terminal-Capacity-3

2x6mm² Multi-Strand
Earth-Terminal-Capacity-1

3×2.5mm²
Earth-Terminal-Capacity-2

3x4mm²
Earth-Terminal-Capacity-3

2x6mm² Multi-Strand
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-15°C to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS1363 BS EN 62368
Commodity-Code

85366990
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

436618927
Tech-Sheet-Page-Footer

7ASS2USBULTGA-QG – Hartland Anthra Gray 2 gang 13A Double Pole Switched Socket with 2 USB Ultra Outlets 2×2.4A Anthra Gray/Quartz Grey
description

Hart Anthra DP SS2 + USBULTx2 GA/QG
product-code

S HART GA
family-code

S HARTLAND
last-inv

11/07/2025
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533445138
Uf-HAMInnerBoxQty

5
Uf-OuterBoxQty

20
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

23
InsertSortOrder

001
Generic-Size

Double
Height

88.0mm
Width

144.5mm
Depth

5.0mm
Box-Fixing-Hole-Centres

120.6mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Anthra Gray
Uf-HAMFrameFinish

n/a
WEB-InsertType

Double Pole
WEB-NumberofGangs

2
MainInsertColour

Anthra Gray
TrimColour

Quartz Grey
Last-Updated-At-Hamilton

03/02/2026

Download datasheet
