Hart RB 1g Telephone Slave BL

Hart RB 1g Telephone Slave BL
Hart RB 1g Telephone Slave BL - Image 2
Hart RB 1g Telephone Slave BL - Image 3

Type

1 gang Telephone Slave

Plate Finish

Richmond Bronze

Insert Finish

Black

Description

Hartland Richmond Bronze 1 gang Telephone Slave Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-031-004
Subheader2

Hartland Television / Data
Insert-Type

1 gang Telephone Slave
Plate-Finish

Richmond Bronze
Insert-Colour

Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

TCS
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Richmond Bronze 1 gang Telephone Slave Black
PlateFinish

Hartland Box Richmond Bronze
EAN13-Barcode

5017504109134
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

86 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990

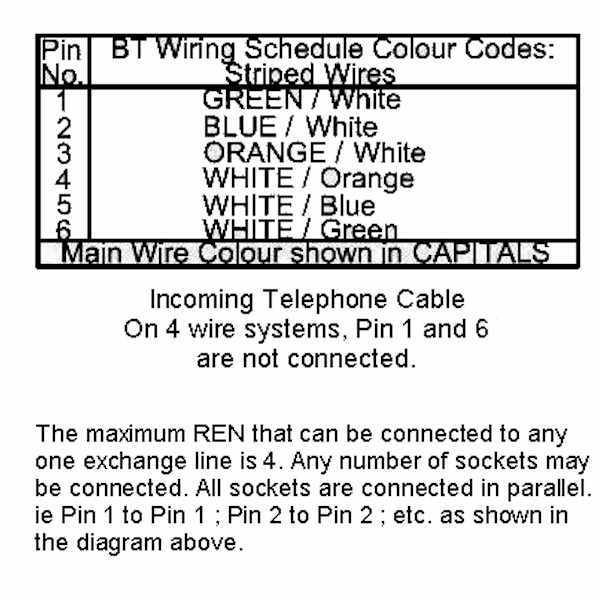

Wiring-Image

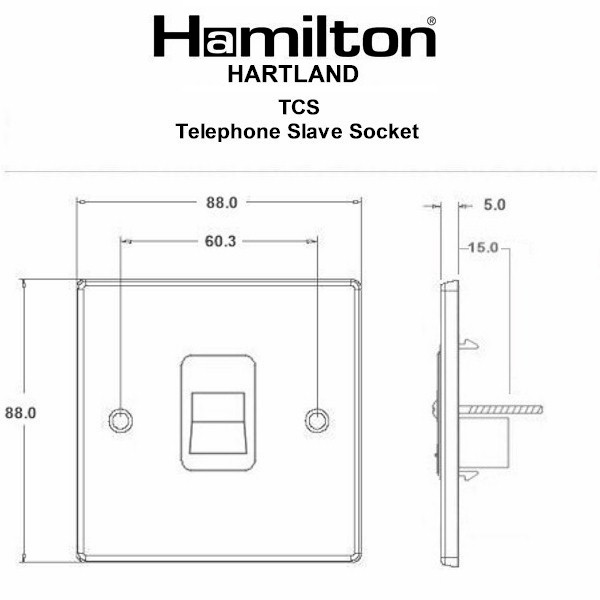

Dimension-Image

Luckins-TSI

436617070
Tech-Sheet-Page-Footer

7RBTCSB – Hartland Richmond Bronze 1 gang Telephone Slave Black
description

Hart RB 1g Telephone Slave BL
product-code

S HART RB
family-code

S HARTLAND
last-inv

10/07/2025
unit-weight

86.00000
weight-units

GR
Uf-LuckinsEDP

4533443282
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

31
InsertSortOrder

004
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Slave
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026

Download datasheet
