Hart MW 1g Telephone Master WH

Hart MW 1g Telephone Master WH
Hart MW 1g Telephone Master WH - Image 2
Hart MW 1g Telephone Master WH - Image 3

Type

1 gang Telephone Master

Plate Finish

Matt White

Insert Finish

White

Description

Hartland Matt White 1 gang Telephone Master White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-031-003
Subheader2

Hartland Television / Data
Insert-Type

1 gang Telephone Master
Plate-Finish

Matt White
Insert-Colour

White
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1
Uf-ItmLabelTechInsert

TCM
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Matt White 1 gang Telephone Master White
PlateFinish

Hartland Box Matt White
EAN13-Barcode

5017504108762

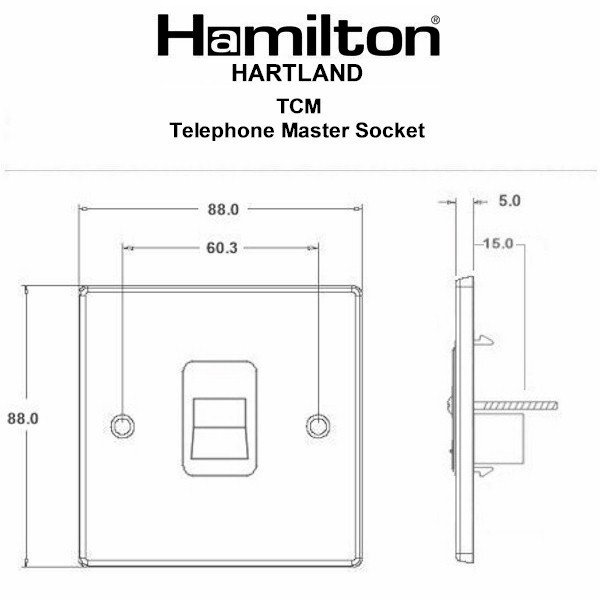

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

132 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Switched-Poles

N/A
Current-Rating

n/a
IP-Rating

IP2XD
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 6312:2:2
Commodity-Code

85176990
Wiring-Image

Dimension-Image

Luckins-TSI

436616686
Tech-Sheet-Page-Footer

7MWTCMW – Hartland Matt White 1 gang Telephone Master White
description

Hart MW 1g Telephone Master WH
product-code

S HART MW
family-code

S HARTLAND
last-inv

12/01/2025
unit-weight

132.00000
weight-units

GR
Uf-LuckinsEDP

4533442898
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

31
InsertSortOrder

003
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Matt White
Uf-HAMFrameFinish

n/a
WEB-InsertType

Telephone Master
WEB-NumberofGangs

1
MainInsertColour

White
TrimColour

n/a
Last-Updated-At-Hamilton

21/01/2026

Download datasheet
