Hart AB 1g No-Isolat TV (Female) BL

SKU: 79DTVFB Category:
Hart AB 1g No-Isolat TV (Female) BL
Hart AB 1g No-Isolat TV (Female) BL - Image 2
Hart AB 1g No-Isolat TV (Female) BL - Image 3
Hart AB 1g No-Isolat TV (Female) BL - Image 4
SKU: 79DTVFB Category:

Type

1 gang Non-Isolated TV (female) (DAB Compatible)

Plate Finish

Antique Brass

Insert Finish

Black

Description

Hartland Antique Brass 1 gang Non-Isolated TV (Female) (DAB Compatible) Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-031-001
Insert-Type

1 gang Non-Isolated TV (female) (DAB Compatible)
Insert-Colour

Black
Uf-ItmLabelTechInsert

DTVF
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Antique Brass 1 gang Non-Isolated TV (Female) (DAB Compatible) Black
PlateFinish

Hartland Box Antique Brass
EAN13-Barcode

5028690291374

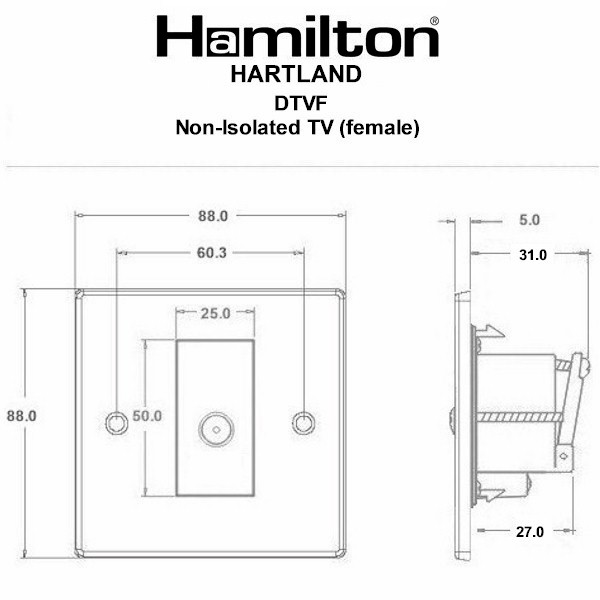

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

N/A
Contact-Gap-Minimum

N/A
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4 x 1.5mm2
Earth-Terminal-Capacity-3

3 x 2.5mm2
Earth-Terminal-Capacity-4

1 x 4mm2 Multi-strand
Earth-Terminal-Capacity-5

1 x 6mm2
Product-Class-1

Must be earthed (ref BS7671 415.2.1)
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS 5733. BS EN 50083-2: 2012/A1:2015. BS EN 61169-2:2007
EuroFix-Additional-Notes

TV Outlet (IEC 169-2 Female Socket) Usually used for FM (DAB) outlet
Frequencies-1

TV DC=5-2200 MHz
Commodity-Code

85367000
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

386903591
Tech-Sheet-Page-Footer

79DTVFB – Hartland Antique Brass 1 gang Non-Isolated TV (Female) (DAB Compatible) Black
product-code

S HART AB
family-code

S HARTLAND
last-inv

01/06/2026
unit-weight

0.00000
weight-units

GR
Uf-LuckinsEDP

4533127922
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

31
InsertSortOrder

001
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Antique Brass
Uf-HAMFrameFinish

n/a
WEB-InsertType

TV Non-Isolated Female
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

n/a
Last-Updated-At-Hamilton

26/01/2026
Current-Rating

n/a
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

35mm
IP-Rating

IP2XD
description

Hart AB 1g No-Isolat TV (Female) BL
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Plate-Finish

Antique Brass
Subheader2

Hartland Television / Data
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfyq/#p=1

Download datasheet
