Hart SS 2g 10AX Inter Rkr SS/WH

Hart SS 2g 10AX Inter Rkr SS/WH
Hart SS 2g 10AX Inter Rkr SS/WH - Image 2
Hart SS 2g 10AX Inter Rkr SS/WH - Image 3
Hart SS 2g 10AX Inter Rkr SS/WH - Image 4

Type

2 gang 10AX Intermediate Rocker

Plate Finish

Satin Steel

Insert Finish

Satin Steel/White

Description

Hartland Satin Steel 2 gang 10AX Intermediate Rocker Satin Steel/White

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-001-022
Insert-Type

2 gang 10AX Intermediate Rocker
Insert-Colour

Satin Steel/White
Uf-ItmLabelTechInsert

MGR32
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Satin Steel 2 gang 10AX Intermediate Rocker Satin Steel/White
PlateFinish

Hartland Box Satin Steel
EAN13-Barcode

5017503247325

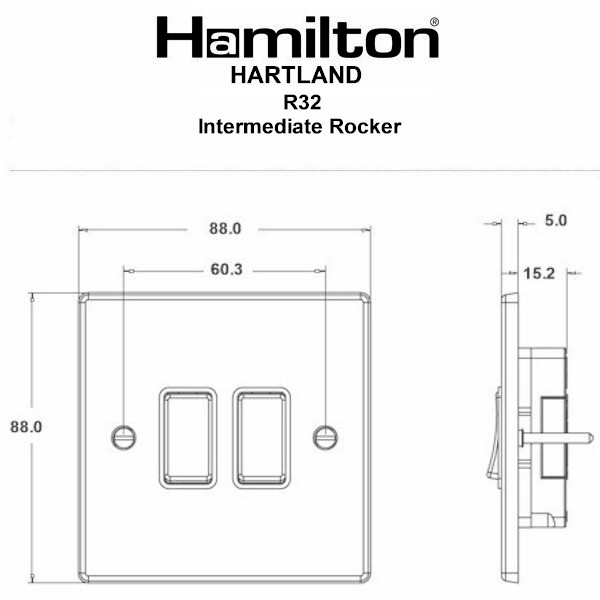

Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

Single
Current-Rating

10AX
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

Item-Image

Dimension-Image

Luckins-TSI

385553256
Tech-Sheet-Page-Footer

74R32SS-W – Hartland Satin Steel 2 gang 10AX Intermediate Rocker Satin Steel/White
product-code

S HART SS
family-code

S HARTLAND
last-inv

25/02/26
unit-weight

114.50000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533112872
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

001
InsertSortOrder

022
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Intermediate
WEB-NumberofGangs

2
MainInsertColour

Satin Steel
TrimColour

White
Last-Updated-At-Hamilton

25/02/26
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Satin Steel
Subheader2

Hartland Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/bfnc/#p=1
Weight

115 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart SS 2g 10AX Inter Rkr SS/WH
Height

88.0mm
Width

88.0mm
Depth

5.0mm
