Hart Rich Brz 10A Triple Pole Rkr BL/BL

Hart Rich Brz 10A Triple Pole Rkr BL/BL
Hart Rich Brz 10A Triple Pole Rkr BL/BL - Image 2
Hart Rich Brz 10A Triple Pole Rkr BL/BL - Image 3
Hart Rich Brz 10A Triple Pole Rkr BL/BL - Image 4

Type

1 gang 10A Triple Pole Rocker

Plate Finish

Richmond Bronze

Insert Finish

Black/Black

Description

Hartland Richmond Bronze 1 gang 10A Triple Pole Rocker Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-001-051
Insert-Type

1 gang 10A Triple Pole Rocker
Insert-Colour

Black/Black
Uf-ItmLabelTechInsert

TP
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Richmond Bronze 1 gang 10A Triple Pole Rocker Black/Black
PlateFinish

Hartland Box Richmond Bronze
EAN13-Barcode

5017504017361
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Switched-Poles

Triple
Current-Rating

10A
Maximum-Load

10 Amp resistive
Mains-Frequency

50Hz
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5 x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3 x2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080

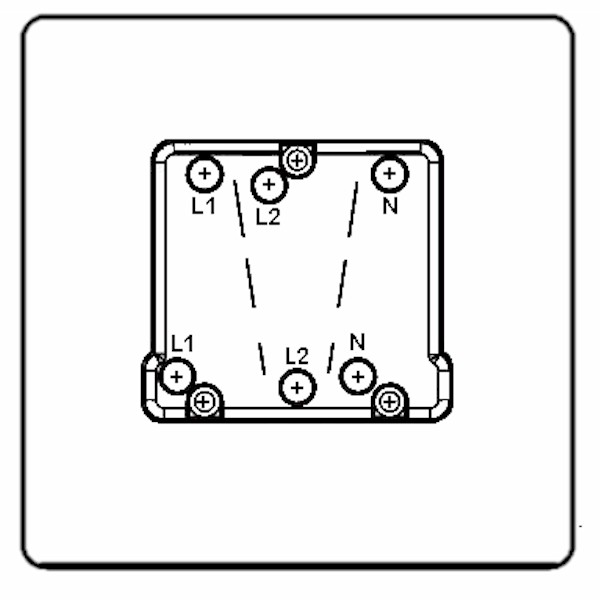

Wiring-Image

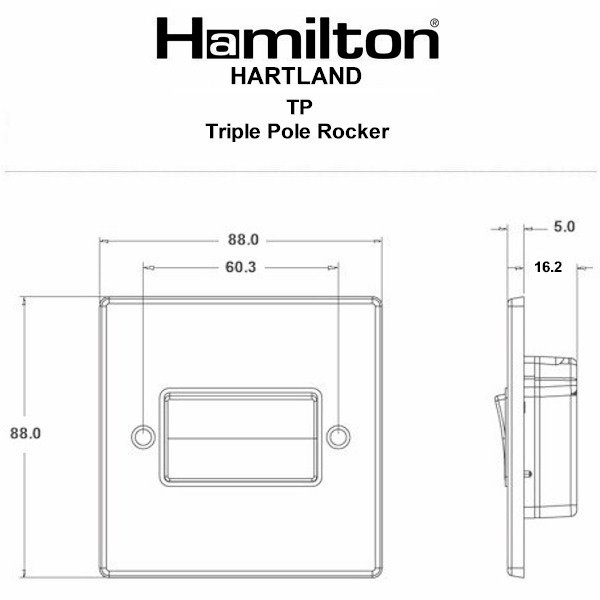

Dimension-Image

Luckins-TSI

405689055
Tech-Sheet-Page-Footer

7RBTPBL-B – Hartland Richmond Bronze 1 gang 10A Triple Pole Rocker Black/Black
product-code

S HART RB
family-code

S HARTLAND
last-inv

26/02/26
unit-weight

114.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533394962
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

Yes
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

010
HAM-SortOrder

001
InsertSortOrder

051
Generic-Size

Single
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Richmond Bronze
Uf-HAMFrameFinish

n/a
WEB-InsertType

Triple Pole
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

26/02/26
Item-Image

Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Plate-Finish

Richmond Bronze
Subheader2

Hartland Range
QR-Instruction

https://online.fliphtml5.com/Hamilton/efun/#p=1
Weight

114 GR
Voltage

220/250V AC
IP-Rating

IP2XD
description

Hart Rich Brz 10A Triple Pole Rkr BL/BL
Height

88.0mm
Width

88.0mm
Depth

5.0mm
