Hart RB 10AX PTM Ret Rkr BL/BL

Hart RB 10AX PTM Ret Rkr BL/BL
Hart RB 10AX PTM Ret Rkr BL/BL - Image 2

Type

1 gang 10AX Push To Make Retractive Rocker

Plate Finish

Richmond Bronze

Insert Finish

Black/Black

Description

Hartland Richmond Bronze 1 gang 10AX Push To Make Retractive Rocker Black/Black

Additional information

InsertColourTitle

Insert Finish/Surround Colour
Section-Name

Hartland
Page-Sort-Order

010-001-041
Subheader2

Hartland Rocker Switches
Insert-Type

1 gang 10AX Push To Make Retractive Rocker
Plate-Finish

Richmond Bronze
Insert-Colour

Black/Black
QR-Instruction

https://online.fliphtml5.com/Hamilton/uzsv/#p=1
Uf-ItmLabelTechInsert

MGRRT
Uf-HAM-Plate-Range

Hartland Box
Uf-HAMPlate-Generic-Size

Single
Range-Name

Hartland
Patents-And-Trade-Marks

Hartland is a Registered Trade Mark No. 2344778
Item-Long-Description

Hartland Richmond Bronze 1 gang 10AX Push To Make Retractive Rocker Black/Black
PlateFinish

Hartland Box Richmond Bronze
EAN13-Barcode

5017503005727
Dimensions(Nominal)

Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm
Weight

87 GR
Fixing-Hole-Centres

Box Fixing = 60.3mm Grid Fixing = N/A
Minimum-Wall-Box-Depth

25mm
Switched-Poles

Single
Current-Rating

10AX
Voltage

220/250V AC
Maximum-Load

10 Amp inductive
Mains-Frequency

50Hz
IP-Rating

IP2XD
Contact-Gap-Minimum

3mm
Terminal-Capacity-1

5x1mm²
Terminal-Capacity-2

4×1.5mm²
Terminal-Capacity-3

1×2.5mm²
Terminal-Capacity-4

1x4mm² Multi-strand
Terminal-Capacity-5

1x6mm²
Earth-Terminal-Capacity-1

5x1mm²
Earth-Terminal-Capacity-2

4×1.5mm²
Earth-Terminal-Capacity-3

3×2.5mm²
Earth-Terminal-Capacity-4

1x4mm² Multi-strand
Earth-Terminal-Capacity-5

1x6mm²
Product-Class-1

Must be earthed
Ambient-Operating-Temperatur

-5° to +40°C
Recommended-Location

Internal Use Only
Maximum-Installation-Altitud

2000m
Standard-Approval

BS EN 60669-1
Commodity-Code

85365080
Wiring-Image

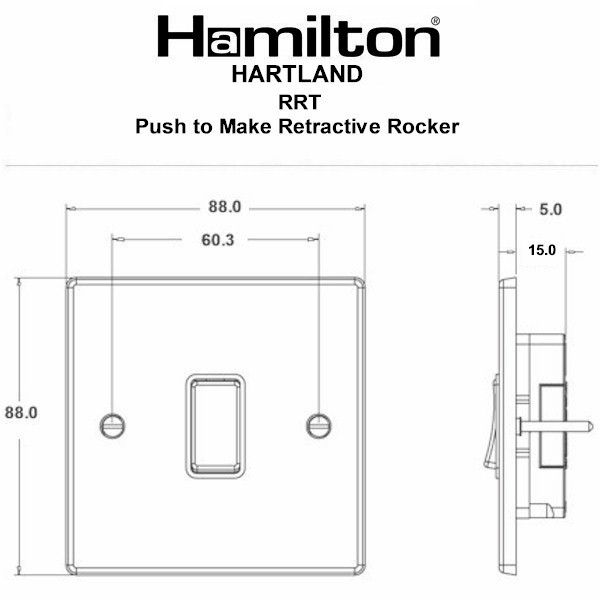

Dimension-Image

Luckins-TSI

438433809
Tech-Sheet-Page-Footer

7RBRRTBL-B – Hartland Richmond Bronze 1 gang 10AX Push To Make Retractive Rocker Black/Black
description

Hart RB 10AX PTM Ret Rkr BL/BL
product-code

S HART SS
family-code

S HARTLAND
unit-weight

87.00000
weight-units

GR
Uf-ItmLabelCE

Uf-LuckinsEDP

4533464805
Uf-HAMInnerBoxQty

10
Uf-OuterBoxQty

100
Picture-Exists

No
Uf-ITMTechDataType

Plate
Uf-IncludeinPriceList

Yes
FamilySortOrder

10
HAM-SortOrder

1
InsertSortOrder

041
Generic-Size

Single
Height

88.0mm
Width

88.0mm
Depth

5.0mm
Box-Fixing-Hole-Centres

60.3mm
Grid-Fixing-Hole-Centres

N/A
Uf-HAMPlateFinish

Satin Steel
Uf-HAMFrameFinish

n/a
WEB-InsertType

Push To Make Retractive
WEB-NumberofGangs

1
MainInsertColour

Black
TrimColour

Black
Last-Updated-At-Hamilton

12/05/2025
