Description
Hartland Matt Black 2 gang 10AX Intermediate Rocker Black/Black – NOT Suitable for Over Painting
Hart MB 2g 10AX Inter Rkr BL/BL
Type
2 gang 10AX Intermediate RockerPlate Finish
Matt BlackInsert Finish
Black/BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-001-022 |
| Subheader2 | Hartland Range |
| Insert-Type | 2 gang 10AX Intermediate Rocker |
| Plate-Finish | Matt Black |
| Insert-Colour | Black/Black |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bfnc/#p=1 |
| Uf-ItmLabelTechInsert | MGR32 |
| Uf-HAM-Plate-Range | Hartland Box |
| Uf-HAMPlate-Generic-Size | Single |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Matt Black 2 gang 10AX Intermediate Rocker Black/Black – NOT Suitable for Over Painting |
| PlateFinish | Hartland Box Matt Black |
| EAN13-Barcode | 5017503008179 |

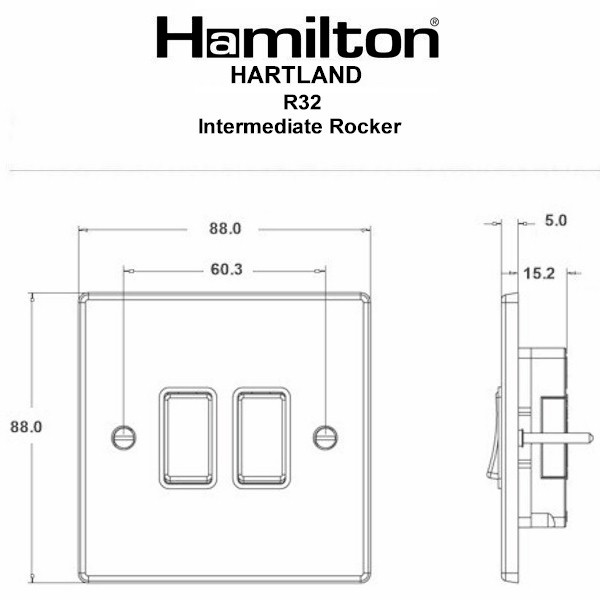

| Dimensions(Nominal) | Single: Height = 88.0mm Width = 88.0mm Depth = 5.0mm |
| Weight | 93 GR |
| Fixing-Hole-Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 25mm |
| Switched-Poles | Single |
| Current-Rating | 10AX |
| Voltage | 220/250V AC |
| Maximum-Load | 10 Amp inductive |
| Mains-Frequency | 50Hz |
| IP-Rating | IP2XD |
| Contact-Gap-Minimum | 3mm |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 1×2.5mm² |
| Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 5x1mm² |
| Earth-Terminal-Capacity-2 | 4×1.5mm² |
| Earth-Terminal-Capacity-3 | 3 x2.5mm² |
| Earth-Terminal-Capacity-4 | 1x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 60669-1 |
| Commodity-Code | 85365080 |
| Wiring-Image | WD2Wv2.jpg |
| Dimension-Image | TD-7R32.jpg |
| Luckins-TSI | 438433692 |
| Tech-Sheet-Page-Footer | 7MBR32BL-B – Hartland Matt Black 2 gang 10AX Intermediate Rocker Black/Black – NOT Suitable for Over Painting |
| description | Hart MB 2g 10AX Inter Rkr BL/BL |
| product-code | S HART MB |
| family-code | S HARTLAND |
| last-inv | 12/02/26 |
| unit-weight | 93.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533464698 |
| Uf-HAMInnerBoxQty | 10 |
| Uf-OuterBoxQty | 100 |
| Picture-Exists | No |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 010 |
| HAM-SortOrder | 001 |
| InsertSortOrder | 022 |
| Generic-Size | Single |
| Height | 88.0mm |
| Width | 88.0mm |
| Depth | 5.0mm |
| Box-Fixing-Hole-Centres | 60.3mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Matt Black |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Intermediate |
| WEB-NumberofGangs | 2 |
| MainInsertColour | Black |
| TrimColour | Black |
| Last-Updated-At-Hamilton | 12/02/26 |
Download datasheet
