Description
Hartland Satin Steel Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White
Hart SS Shaver Dual Volt Socket WH
Type
Shaver Dual Voltage Unswitched Socket (Vertically Mounted)Plate Finish
Satin SteelInsert Finish
WhiteAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-021-011 |
| Insert-Type | Shaver Dual Voltage Unswitched Socket (Vertically Mounted) |
| Insert-Colour | White |
| Uf-ItmLabelTechInsert | SHS |
| Uf-HAM-Plate-Range | Hartland Box Vertical |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Satin Steel Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White |
| PlateFinish | Hartland Box Vertical Satin Steel |
| EAN13-Barcode | 5017503240036 |

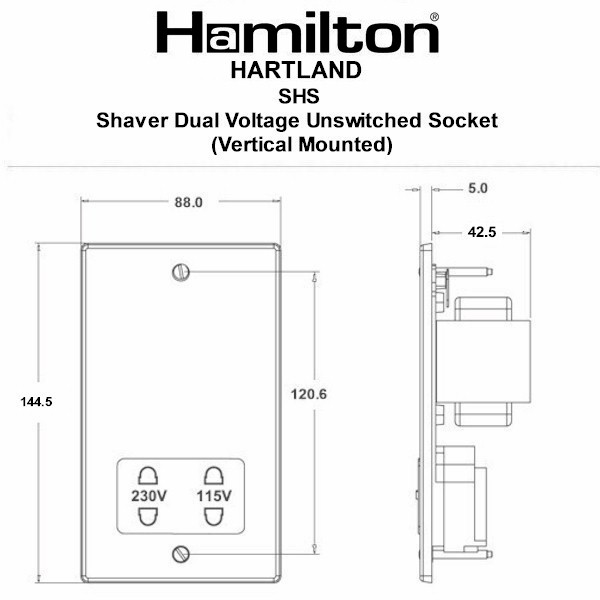

| Dimensions(Nominal) | Double: Height = 144.5mm Width = 88.0mm Depth = 5.0mm |
| Switched-Poles | None |
| Current-Rating | 20VA |
| Maximum-Load | 200/250V input; 115/230V 20VA output |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 9x1mm² |
| Earth-Terminal-Capacity-2 | 6×1.5mm² |
| Earth-Terminal-Capacity-3 | 4×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 61558-2-5 + BS 4573 |
| Additional-Notes | Must be mounted vertically. Shuttered :Yes. Box Depth 47mm |
| Commodity-Code | 85366990 |

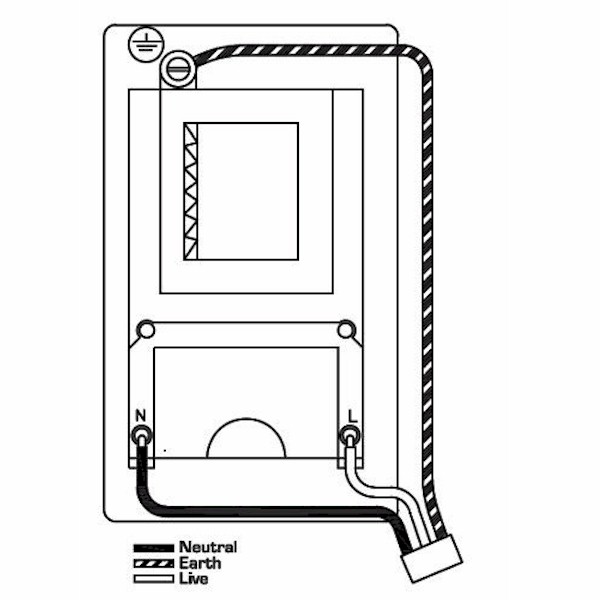

| Wiring-Image | WDSHS.jpg |
| Item-Image | 74SHSW.jpg |
| Dimension-Image | TD-7SHS.jpg |
| Luckins-TSI | 385553366 |
| Tech-Sheet-Page-Footer | 74SHSW – Hartland Satin Steel Shaver Dual Voltage Unswitched Socket (Vertically Mounted) White |
| product-code | S HART SS |
| family-code | S HARTLAND |
| last-inv | 03/02/2026 |
| unit-weight | 700.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533112982 |
| Uf-HAMInnerBoxQty | 2 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 10 |
| HAM-SortOrder | 21 |
| InsertSortOrder | 011 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Satin Steel |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Shaver Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | White |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 03/02/2026 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 47mm |
| Plate-Finish | Satin Steel |
| Subheader2 | Hartland Power Sockets |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bzky/#p=1 |
| Weight | 700 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart SS Shaver Dual Volt Socket WH |
| Height | 144.5mm |
| Width | 88.0mm |
| Depth | 5.0mm |
Download datasheet
