Description
Hartland Satin Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black
Hart SB Shaver Dual Volt Socket BL
Type
Shaver Dual Voltage Unswitched Socket (Vertically Mounted)Plate Finish
Satin BrassInsert Finish
BlackAdditional information
| InsertColourTitle | Insert Finish/Surround Colour |
|---|---|
| Section-Name | Hartland |
| Page-Sort-Order | 010-021-011 |
| Insert-Type | Shaver Dual Voltage Unswitched Socket (Vertically Mounted) |
| Insert-Colour | Black |
| Uf-ItmLabelTechInsert | SHS |
| Uf-HAM-Plate-Range | Hartland Box Vertical |
| Uf-HAMPlate-Generic-Size | Double |
| Range-Name | Hartland |
| Patents-And-Trade-Marks | Hartland is a Registered Trade Mark No. 2344778 |
| Item-Long-Description | Hartland Satin Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black |
| PlateFinish | Hartland Box Vertical Satin Brass |
| EAN13-Barcode | 5017503221035 |

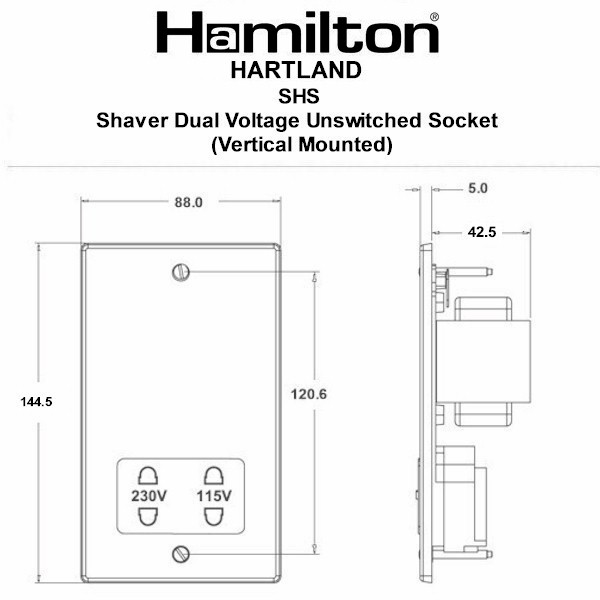

| Dimensions(Nominal) | Double: Height = 144.5mm Width = 88.0mm Depth = 5.0mm |
| Switched-Poles | None |
| Current-Rating | 20VA |
| Maximum-Load | 200/250V input; 115/230V 20VA output |
| Mains-Frequency | 50Hz |
| Contact-Gap-Minimum | None |
| Terminal-Capacity-1 | 5 x1mm² |
| Terminal-Capacity-2 | 4×1.5mm² |
| Terminal-Capacity-3 | 3×2.5mm² |
| Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Terminal-Capacity-5 | 1x6mm² |
| Earth-Terminal-Capacity-1 | 9x1mm² |
| Earth-Terminal-Capacity-2 | 6×1.5mm² |
| Earth-Terminal-Capacity-3 | 4×2.5mm² |
| Earth-Terminal-Capacity-4 | 2x4mm² Multi-strand |
| Earth-Terminal-Capacity-5 | 1x6mm² |
| Product-Class-1 | Must be earthed |
| Ambient-Operating-Temperatur | -5° to +40°C |
| Recommended-Location | Internal Use Only |
| Maximum-Installation-Altitud | 2000m |
| Standard-Approval | BS EN 61558-2-5 + BS 4573 |
| Additional-Notes | Must be mounted vertically. Shuttered :Yes. Box Depth 47mm |
| Commodity-Code | 85366990 |
| Wiring-Image | WDSHS.jpg |
| Item-Image | 72SHSB.jpg |
| Dimension-Image | TD-7SHS.jpg |
| Luckins-TSI | 385550974 |
| Tech-Sheet-Page-Footer | 72SHSB – Hartland Satin Brass Shaver Dual Voltage Unswitched Socket (Vertically Mounted) Black |
| product-code | S HART SB |
| family-code | S HARTLAND |
| last-inv | 25/02/26 |
| unit-weight | 710.00000 |
| weight-units | GR |
| Uf-ItmLabelCE | CEPCC.jpg |
| Uf-LuckinsEDP | 4533110599 |
| Uf-HAMInnerBoxQty | 2 |
| Uf-OuterBoxQty | 20 |
| Picture-Exists | Yes |
| Uf-ITMTechDataType | Plate |
| Uf-IncludeinPriceList | Yes |
| FamilySortOrder | 010 |
| HAM-SortOrder | 021 |
| InsertSortOrder | 011 |
| Generic-Size | Double |
| Box-Fixing-Hole-Centres | 120.6mm |
| Grid-Fixing-Hole-Centres | N/A |
| Uf-HAMPlateFinish | Satin Brass |
| Uf-HAMFrameFinish | n/a |
| WEB-InsertType | Shaver Socket |
| WEB-NumberofGangs | 1 |
| MainInsertColour | Black |
| TrimColour | n/a |
| Last-Updated-At-Hamilton | 25/02/26 |
| Fixing-Hole-Centres | Box Fixing = 120.6mm Grid Fixing = N/A |
| Minimum-Wall-Box-Depth | 47mm |
| Plate-Finish | Satin Brass |
| Subheader2 | Hartland Range |
| QR-Instruction | https://online.fliphtml5.com/Hamilton/bzky/#p=1 |
| Weight | 710 GR |
| Voltage | 220/250V AC |
| IP-Rating | IP2XD |
| description | Hart SB Shaver Dual Volt Socket BL |
| Height | 144.5mm |
| Width | 88.0mm |
| Depth | 5.0mm |
